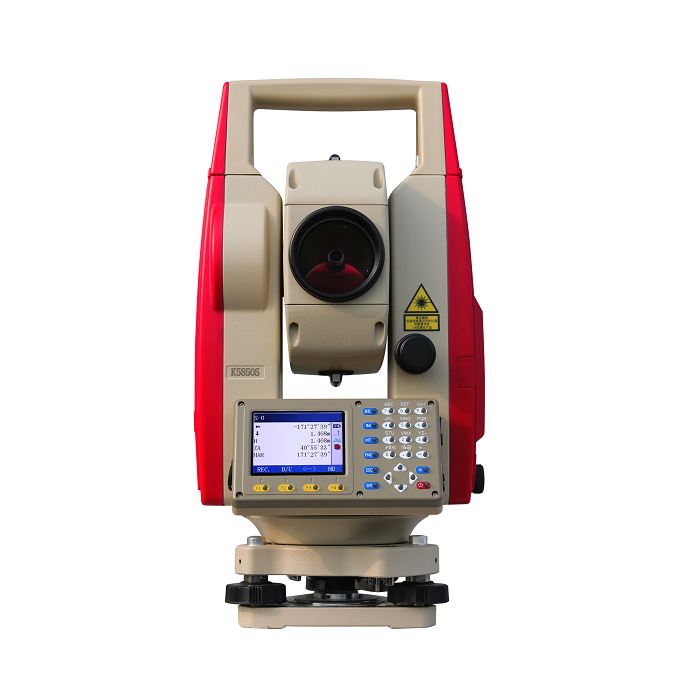

KTS-462 Reflectorless

KTS-462 Reflectorless

Models:KTS-462R6LC, KTS-462R10LC

This reliable, powerful Manual Total Station features color screen, temperature/ pressure sensor, Bluetooth.
600/1000m

Reflectorless Range

xian.jpgColor Screen

Clear Display Under Sunshine

xian.jpgBluetoothWireless Communicationxian.jpgT-P Sensor

Automatic Distance Result Correction





LONG DISTANCE

MEASUREMENT





Thanks to the high efficiency EDM, 462 features long distance measurements: 600/1000m in reflectorless mode and up to 5000m using a single prism, with millimeter accuracy.



edm


FAST, ACCURATE,

RELIABLE EDM





The fastest distance measuring speed is down to 0.1 to 0.3 second, with 2mm accuracy, makes any job extremely cost effective and reliable.




sd

LARGE MEMORY

EASY DATA

MANAGEMENT




The 4Mb internal memory is able to store 40,000 points, the SD card up to 32 Gb can store a huge amount of data. Users don't need to worry about memory space. Easily operation on data adding, deleting, modifying, transferring.Total station can be recognized as a flash memory disk by PC.





RUGGED,

DURABLE.



IP55 dustproof/waterproof rating ensures 462's high reliability in all weather conditions and allows working even under very humid conditions and where sand and dust are present.

The high performance telescope, featurs 30X magnification and illuminated reticle, provide the best sighting quality in any lighting condition.




10


VERSATILE,

PRACTICAL

PROGRAM



Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: angle offset, angle repetition, dual-distance offset, coordinate measurement, REM, MLM, Staking out, Road Design, area calculation, reference line, point projection, setting out Arc...





4


TEMPERATURE &

PRESSURE SENSORS




Temperature and pressure changes have a negative impact on the accuracy of distance measurements. The Smart T-P Sensor automatically monitors the changes and adjusts the distance calculations.


6


BLUETOOTH




An external controllers can be linked to total station, through the Bluetooth™ wireless connection.


Distance Measurement

Measurement Range1 prism:                   5000m3 prism:                   8000-10000mReflectorless:           600/1000m

Accuracy

Prism:                  ±(2+2ppmx D)mmReflectorless:       ±(3+2ppmx D)mm

Measuring Time0.1 - 1.5s
Atmosphere CorrectionAuto InputPrism Constant CorrectionAuto Input









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading1"/ 5" optional
Compensator

Dual Axis Liquid-electricRange ±4', Accuracy 1"









User Interaction

Operation SystemDOS

Color ScreenYES, 3.5", 240x320 dots
Touch ScreenN/A

KeyboardFull Alphanumeric keys with backlight

Trigger KeyN/ABluetoothYES
Internal Storage

4Mb, 40,000 points


External Storage

up to 32GB SD card







Working Capability

ProgramCoordinate measurement, setout, area, road design...

Graphic Display
N/A
Laser Pointer & Laser PlummetYes
Endurance

8-12 hours


Setout Guide Light

N/A


Camera Function

N/A





Distance Measurement

Measurement Range1 prism:                   5000m3 prism:                   8000-10000mReflectorless:           600/1000m

Accuracy

Prism:                  ±(2+2ppmx D)mmReflectorless:       ±(3+2ppmx D)mm

Measuring Time0.1 - 1.5s
Atmosphere CorrectionAuto InputPrism Constant CorrectionAuto Input









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading1"/ 5" optional
Compensator

Dual Axis Liquid-electricRange ±4', Accuracy 1"









User Interaction

Operation SystemDOS

Color ScreenYES, 3.5", 240x320 dots
Touch ScreenN/A

KeyboardFull Alphanumeric keys with backlight

Trigger KeyN/ABluetoothYES
Internal Storage

4Mb, 40,000 points


External Storage

up to 32GB SD card







Working Capability

ProgramCoordinate measurement, setout, area, road design...

Graphic Display
N/A
Laser Pointer & Laser PlummetYes
Endurance

8-12 hours


Setout Guide Light

N/A


Camera Function

N/A
