1200m Prism Recognition, Accurate and Easy. KTS-591 is able to recognize prism within 1200m line of sight, operators don’t need to frequently adjust instrument by their hands. It improves the efficiency and make the work easier. |
|
| 300m Search and Track, Stable and Smooth. KTS-591 is able to actively search for a prism in 300m, and follow prism’s movement constantly. The range is Horizontally 360°, Vertically ±18°. So when the prism-man has moved to a new target point, there is no need to re-aim and reset from the total station. It ensures the continuity of the measurement work and decrease the down time. |
Prism Plus RTK, Performance Enhanced! Now KTS-591 is allowing surveyors to combine their GNSS RTK into total station measurement, by installing RTK receiver above the prism. When the prism is temporarily getting out of the line-of-sight, KTS-591 can use RTK positioning data to find the prism. Once the prism is moving out from the obstacle, total station can re-sight at it immediately. It saves a lot of time of prism re-searching. |  |
 | Advanced Hardware, Superb Experience. KTS-591 features 4+64GB Memory & 4G LTE internet connection, data file storing and sharing is convenient. The 5.5 inches touch screen and the 13 shortcut keys help users view the data intuitively and operate quickly. Zigbee Long-range communication module can provide a stable connection between total station and data logger in maximum 600m range. |

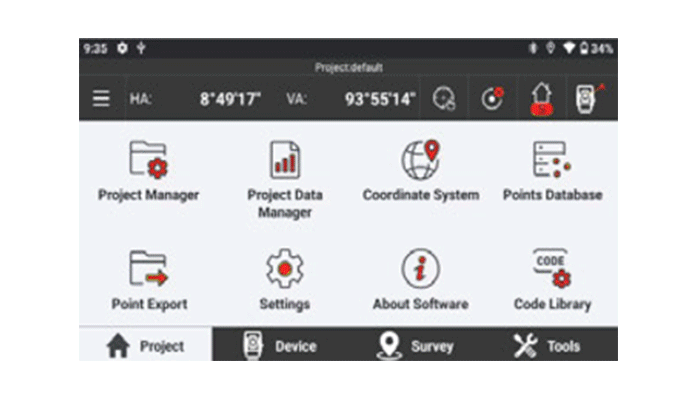

K-survey App, More Capable & Enjoyable. Previously, K-survey App can be used with Kolida GNSS receiver, manual total station, now it comes to Robotic Total Stations. Graphical and iconic guidance helps you collect data and conduct staking out efficiently. Map-driven workflow provides you intuitive guidance and real-time feedback. |  |
 | Automated Monitoring, Reliable and Resultful. By delivering exceptional angular and distance measurement accuracy, KTS-591 enables precise detection of minor displacement changes at monitoring points. The wireless communication function on board allows users to perform remote control and data management at anytime.Automated measuring and data recording also can reduce labor cost and improve accuracy. |
| Distance Measurement | ||
Measurement RangeStandard prism mode : 3500mReflectorless: 1000m | Accuracy Standard prism mode: ±1mm+1ppmReflectorless: D<500m: ±2mm+2ppm D>500m: +5mm+2ppm | Measuring TimeStandard prism mode(Tracking/Precise) : 0.1/0.3secReflectorless: 0.3-3sec |
| Angle Measurement | ||
Reading SystemAbsolute, continuous four-quadrant | Accuracy1"(0.5" is optional) | Display Resolution0.1"/ 1" |
| Angle Units DEG 360°/GON 400/MIL 6.400 | ||
| APR | ||
Centering range 3-1200m | Time3-5sec | Search range3-600m |
| AIM accuracy±1 mm @ 100 m | ||
| PS | ||
| Search range 3-300m | Search time Typically 90°: 3.5 s | Angle H: 360° V: ±18° |
| Lock range 3-600m | ||
| User Interaction | ||
Operation SystemAndroid 11 | Display5.5-inch, TFT LCD screen, 720 x1280 px (2 displays) | Data transfer Bluetooth long-range 300 m WLAN USB-OTG Network 4G |
Keyboard13 keys | Memory RAM: 4GB, ROM: 64GB | |
| Working Capability | ||
MotorizationTechnology: DC Servo MotorMax rotation speed: 60°/secRotation time F1/F2: 2.9 sec | Level Vial Sensitivity Plate level: 30“/2 mmCircular level: 8’ | Laser Plummet Laser Type: Red laser dot, 635 nmAccuracy: ±1.5 mm at 1.5 m |
| Endurance up to 6 hours | Camera Function N/A | |
| Distance Measurement | ||
Measurement RangeStandard prism mode : 3500mReflectorless: 1000m | Accuracy Standard prism mode: ±1mm+1ppmReflectorless: D<500m: ±2mm+2ppm D>500m: +5mm+2ppm | Measuring TimeStandard prism mode(Tracking/Precise) : 0.1/0.3secReflectorless: 0.3-3sec |
| Angle Measurement | ||
Reading SystemAbsolute, continuous four-quadrant | Accuracy1"(0.5" is optional) | Display Resolution0.1"/ 1" |
| Angle Units DEG 360°/GON 400/MIL 6.400 | ||
| APR | ||
Centering range 3-1200m | Time3-5sec | Search range3-600m |
| AIM accuracy±1 mm @ 100 m | ||
| PS | ||
| Search range 3-300m | Search time Typically 90°: 3.5 s | Angle H: 360° V: ±18° |
| Lock range 3-600m | ||
| User Interaction | ||
Operation SystemAndroid 11 | Display5.5-inch, TFT LCD screen, 720 x1280 px (2 displays) | Data transfer Bluetooth long-range 300 m WLAN USB-OTG Network 4G |
Keyboard13 keys | Memory RAM: 4GB, ROM: 64GB | |
| Working Capability | ||
MotorizationTechnology: DC Servo MotorMax rotation speed: 60°/secRotation time F1/F2: 2.9 sec | Level Vial Sensitivity Plate level: 30“/2 mmCircular level: 8’ | Laser Plummet Laser Type: Red laser dot, 635 nmAccuracy: ±1.5 mm at 1.5 m |
| Endurance up to 6 hours | Camera Function N/A | |
