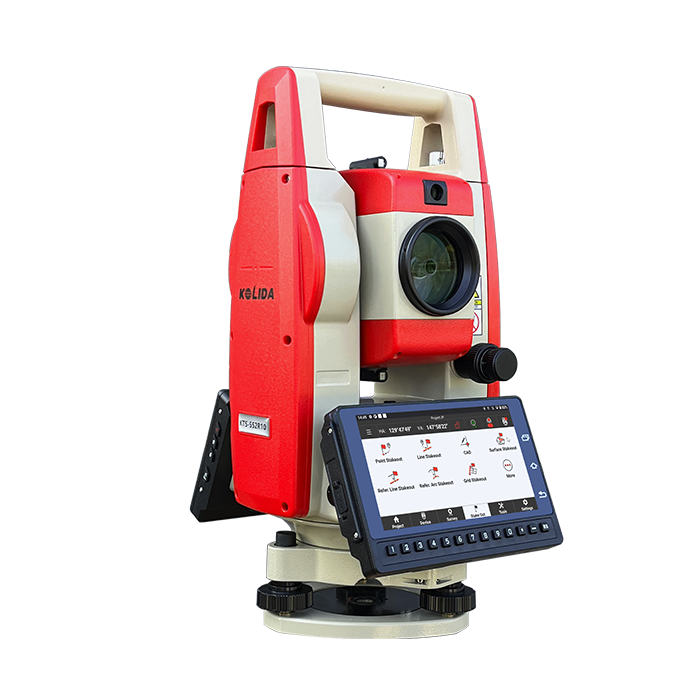

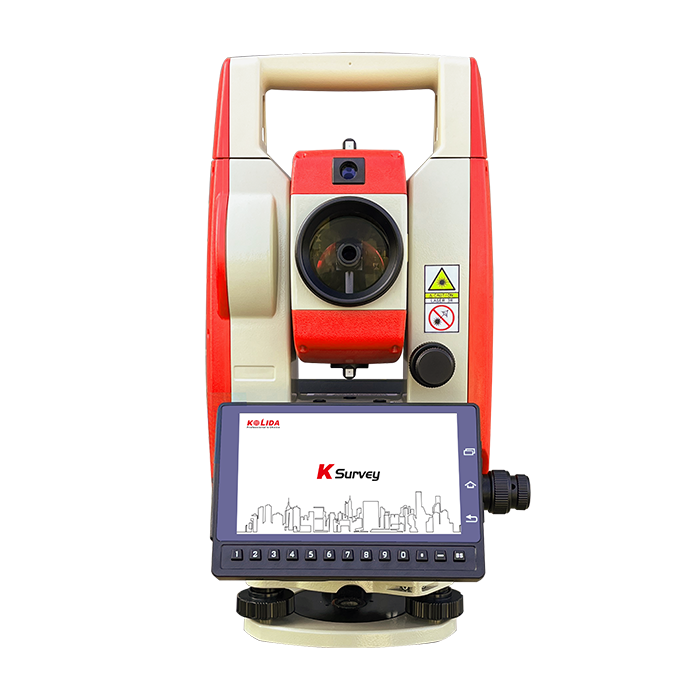

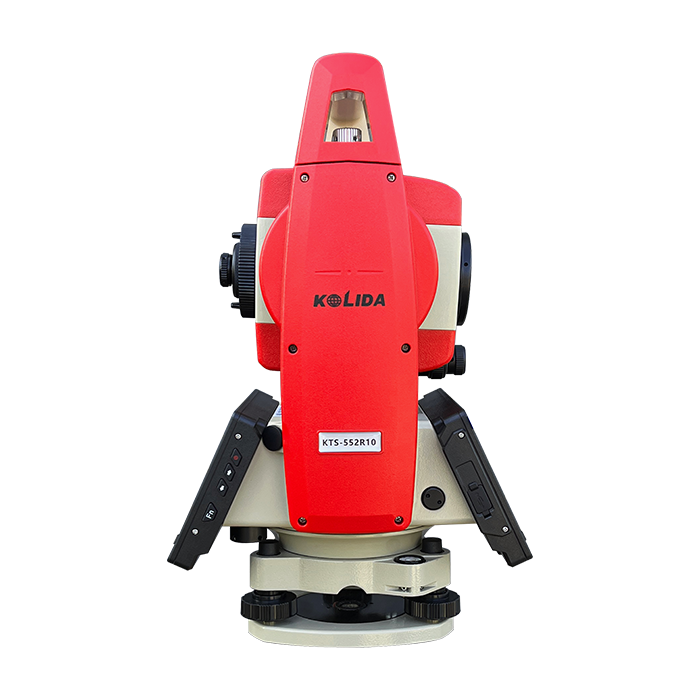

KTS-552R15

KTS-552R15

Models:KTS-552R15

KTS-552R15 total station provides a reliable and efficient solution to users who need to work faster and more productive
1500m

Reflectorless Range

xian.jpg8 * 1.5GHz CPU

3+32GB Memory

xian.jpg5 Inches Screen1280 * 720, High Clarityxian.jpg4G + wifi +BT

Communication


          5525

More Powerful than Ever,

More Versatile than Ever!


KTS-552 Android Total Station is equipped with an 8 -cores 1.5GHz CPU, 3 + 32 GB memory, the system works much smoother and calculate much faster than old generation equipment, it also performs better when importing large size base map or design files.




    Videohttps://www.youtube.com/watch?v=YgeHbx-Mez0


Simple and Upgradable!

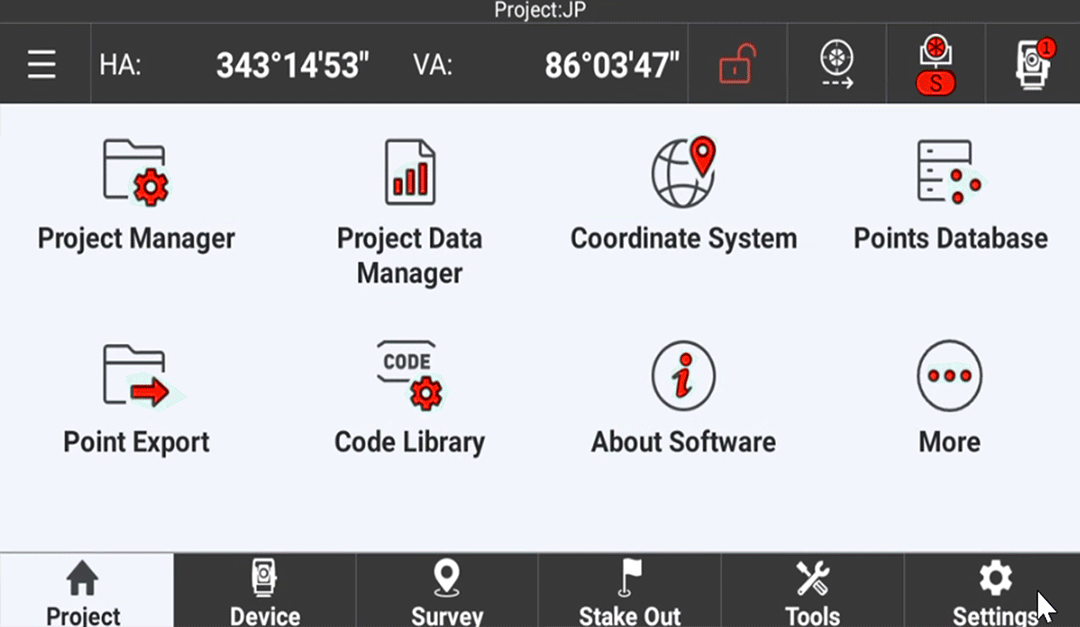

KTS-552 is powered by Android OS, easy to learn, combined with Kolida SurveyStar field software, it offers a simple and productive way of working



Moreover, user can develop and install their own application into the system, to meettheir special work demand...




         5526
          5527

Measures Longer and longer,

Improvement Never Settles!


How could we lift the ranging cabability to a new level of 1000/1500m? The three key factors are "Dual-light Source Distance Measuring technology", optimization of the signal-to-noise ratio, a more stable objective lens system.


Video: 1000m and 1500m Non-prism measurement in cloudy weather


https://www.youtube.com/watch?v=bpnFW2EdxVY

A New Step to be More Accurate,

Innovation Never Stops!


Every hard working surveyor deserves a higher precision than before.


Four innovations have been realized in our newly designed optical system to achieve this goal: "Focal Length Compensation Mirror", "Fully sealed emitting laser circuit", "Less reflectors in optical part", "the 4th Generation EDM CPU".


Articlehttp://www.kolidainstrument.com/news/details/id/113.html


         2
         5528

Practical Survey Program

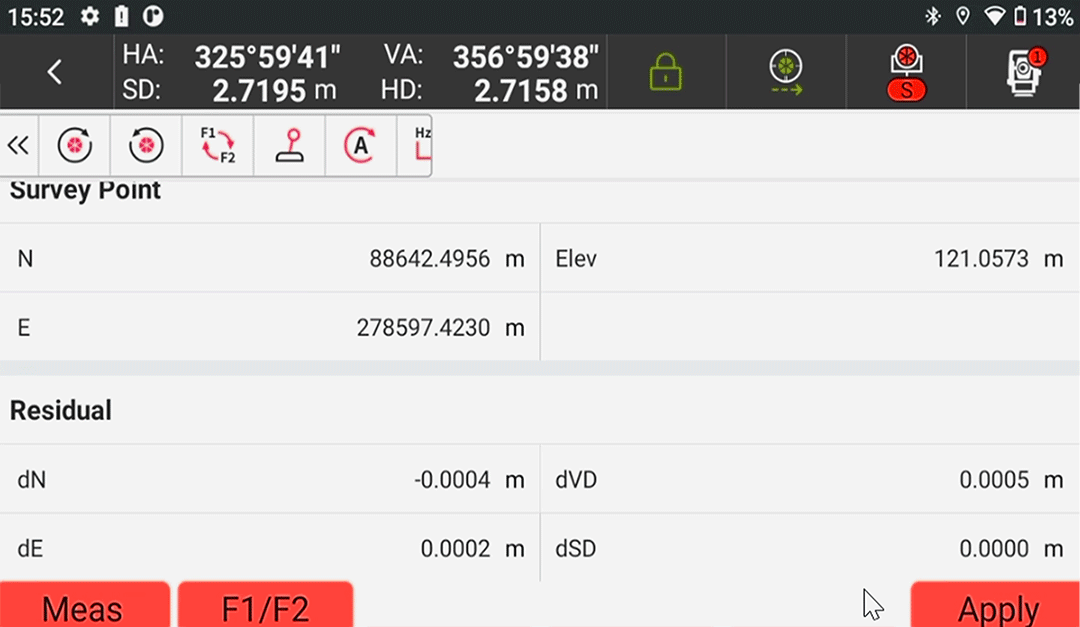

Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: Resection, Point to Line, Free Station, Point Collect, Distance Offset, Plane Offset, Column Offset, REM, Line & Point, Line & Angle,  Point Setout, Reference Line, Line Setout, Arc Setout, Reduction, XYZ Calc., Inverse, Area & Girth, Dist. Conversation, Angle Conversation, Average, Triangle Calc., Calculator…







Intuitive and Dependable

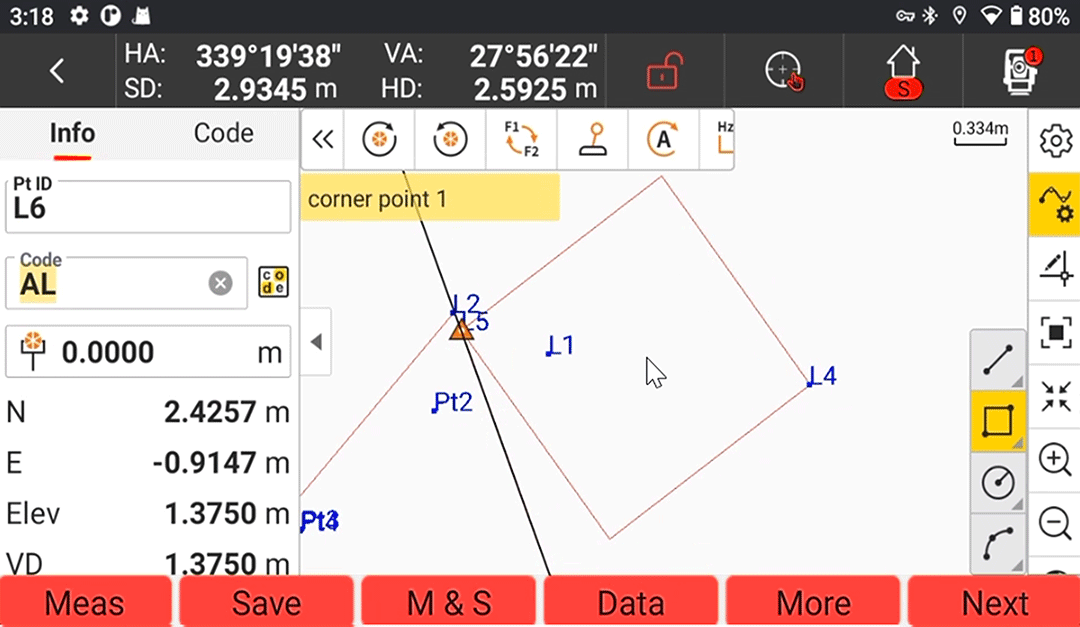

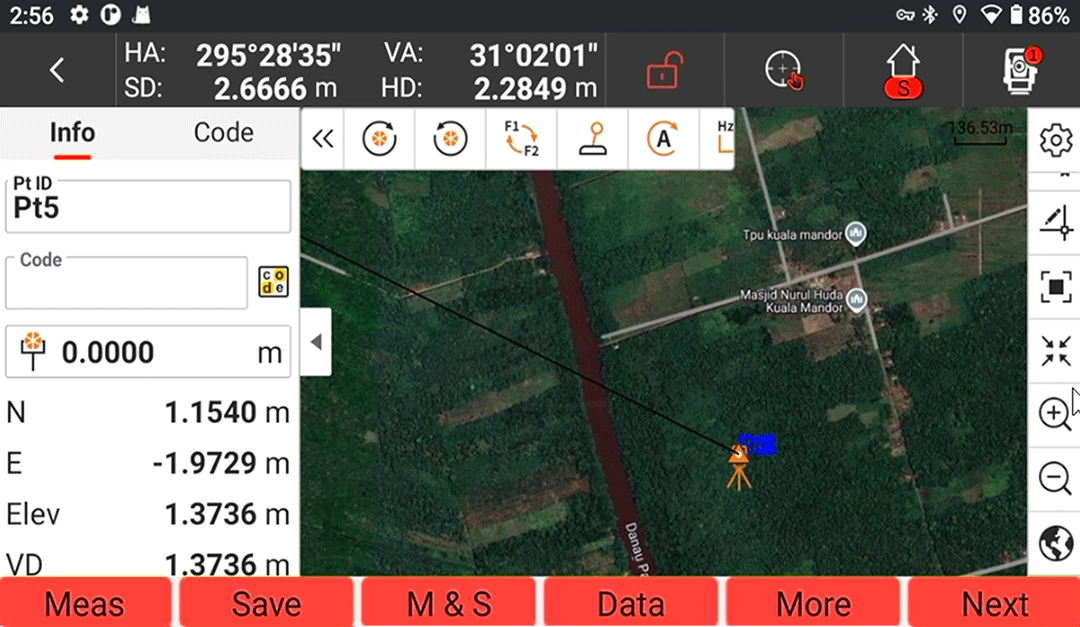

With the 5 inches, 1280 * 720, high clarity touch screen, KTS- 552 can turn complex data numbers into realistic graphic displays. Measuring on basemap, more intuitive and less error happens.

More information and buttons can be displayed in one screen, the better visuality makes workflow easier and shorter..

           5530


          5529

Easy for Training and Learning


Thanks for the Air mirroring function of Android OS, now user can share total station screen to other devices, to make demonstration/ training more intuitive and productive.




Video: https://www.youtube.com/watch?v=bonp6XCNZvw




Distance Measurement

Measurement Range1 prism:                   5000m3 prism:                   8000-10000mReflectorless:           1500m

Accuracy

Prism:                  ±(2+2ppmx D)mmReflectorless:       ±(3+2ppmx D)mm

Measuring Time0.1 - 1.5s
Atmosphere CorrectionAuto correction by manually input ParametersPrism Constant CorrectionAuto correction by manually input Parameters









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading1"/ 5" optional
Compensator

Dual Axis Liquid-electricRange ±4', Accuracy 1"









User Interaction

Operation SystemAndroid 6.0 OS

Color ScreenYes, 1280 * 720Touch ScreenYes

KeyboardNumeric keys with backlight

Trigger KeyN/ABluetooth & wifiBluetooth, wifi, 4G
Internal Storage

3 + 32GB


External Storage

USB Type C (OTG) and TF Card







Working Capability

ProgramCoordinate measurement, setout, area, road design...

Graphic Display
Yes
Laser Pointer & Laser PlummetYes
Endurance

8 hours


Setout Guide Light

N/A


Camera Function

N/A





Distance Measurement

Measurement Range1 prism:                   5000m3 prism:                   8000-10000mReflectorless:           1500m

Accuracy

Prism:                  ±(2+2ppmx D)mmReflectorless:       ±(3+2ppmx D)mm

Measuring Time0.1 - 1.5s
Atmosphere CorrectionAuto correction by manually input ParametersPrism Constant CorrectionAuto correction by manually input Parameters









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading1"/ 5" optional
Compensator

Dual Axis Liquid-electricRange ±4', Accuracy 1"









User Interaction

Operation SystemAndroid 6.0 OS

Color ScreenYes, 1280 * 720Touch ScreenYes

KeyboardNumeric keys with backlight

Trigger KeyN/ABluetooth & wifiBluetooth, wifi, 4G
Internal Storage

3 + 32GB


External Storage

USB Type C (OTG) and TF Card







Working Capability

ProgramCoordinate measurement, setout, area, road design...

Graphic Display
Yes
Laser Pointer & Laser PlummetYes
Endurance

8 hours


Setout Guide Light

N/A


Camera Function

N/A





See more specs
