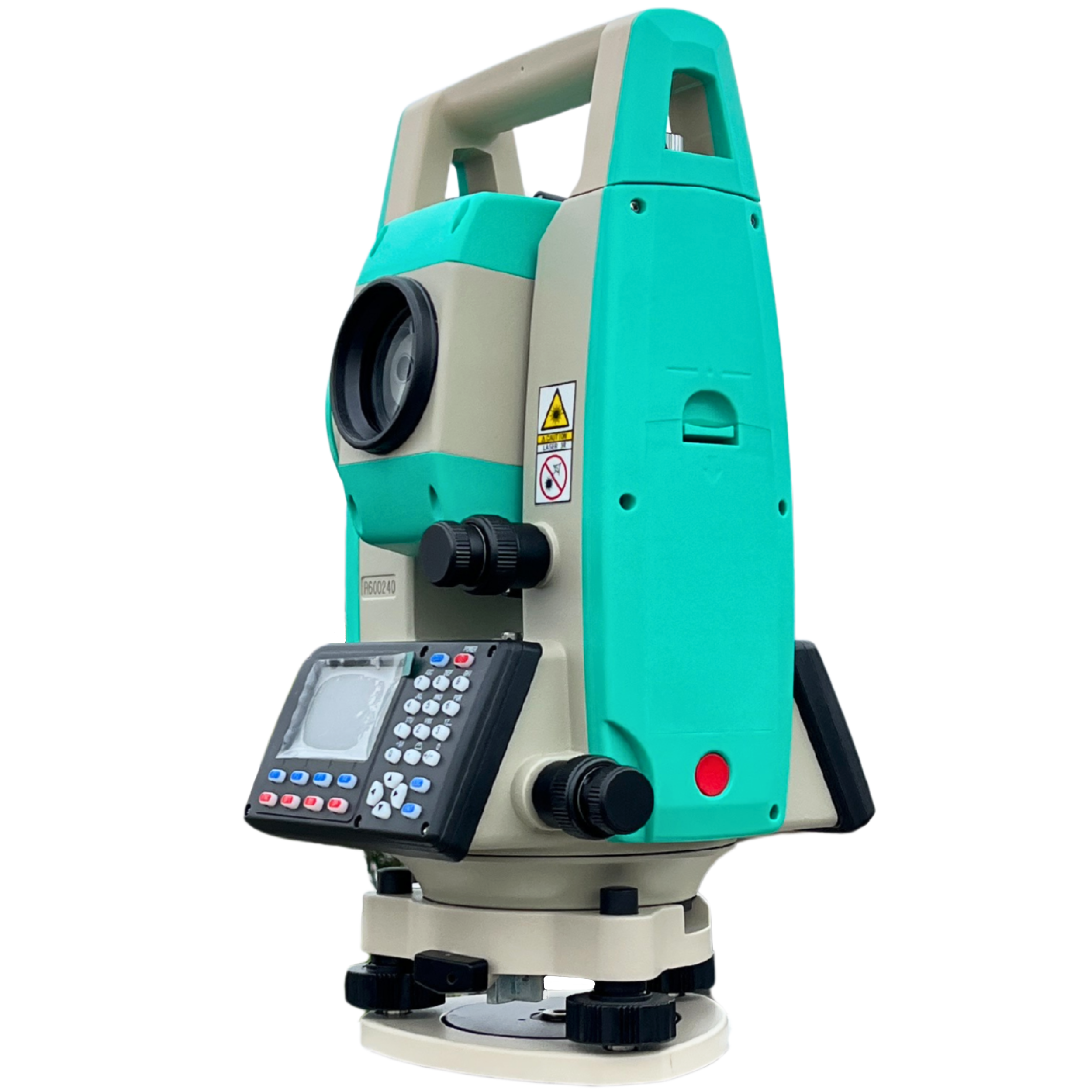

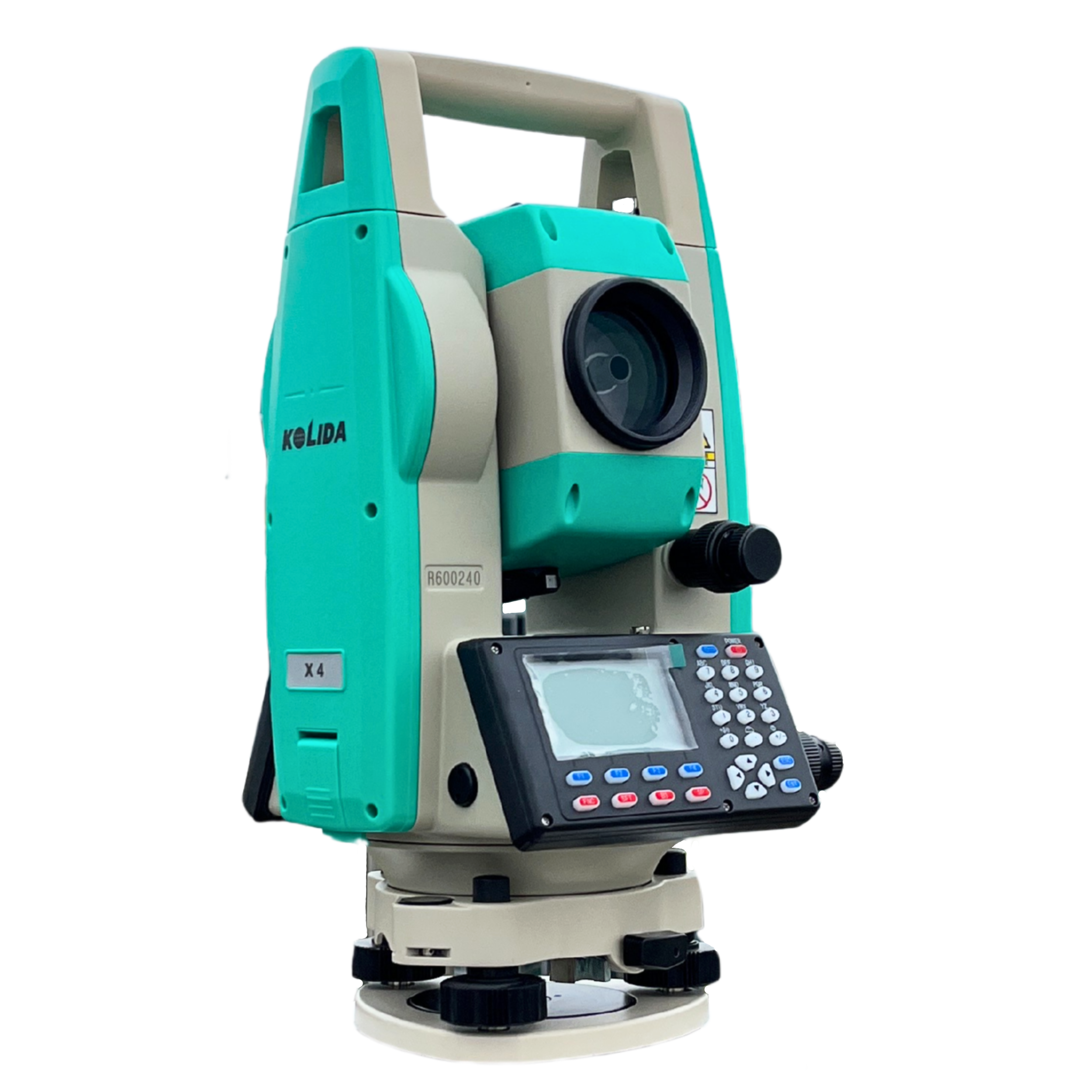

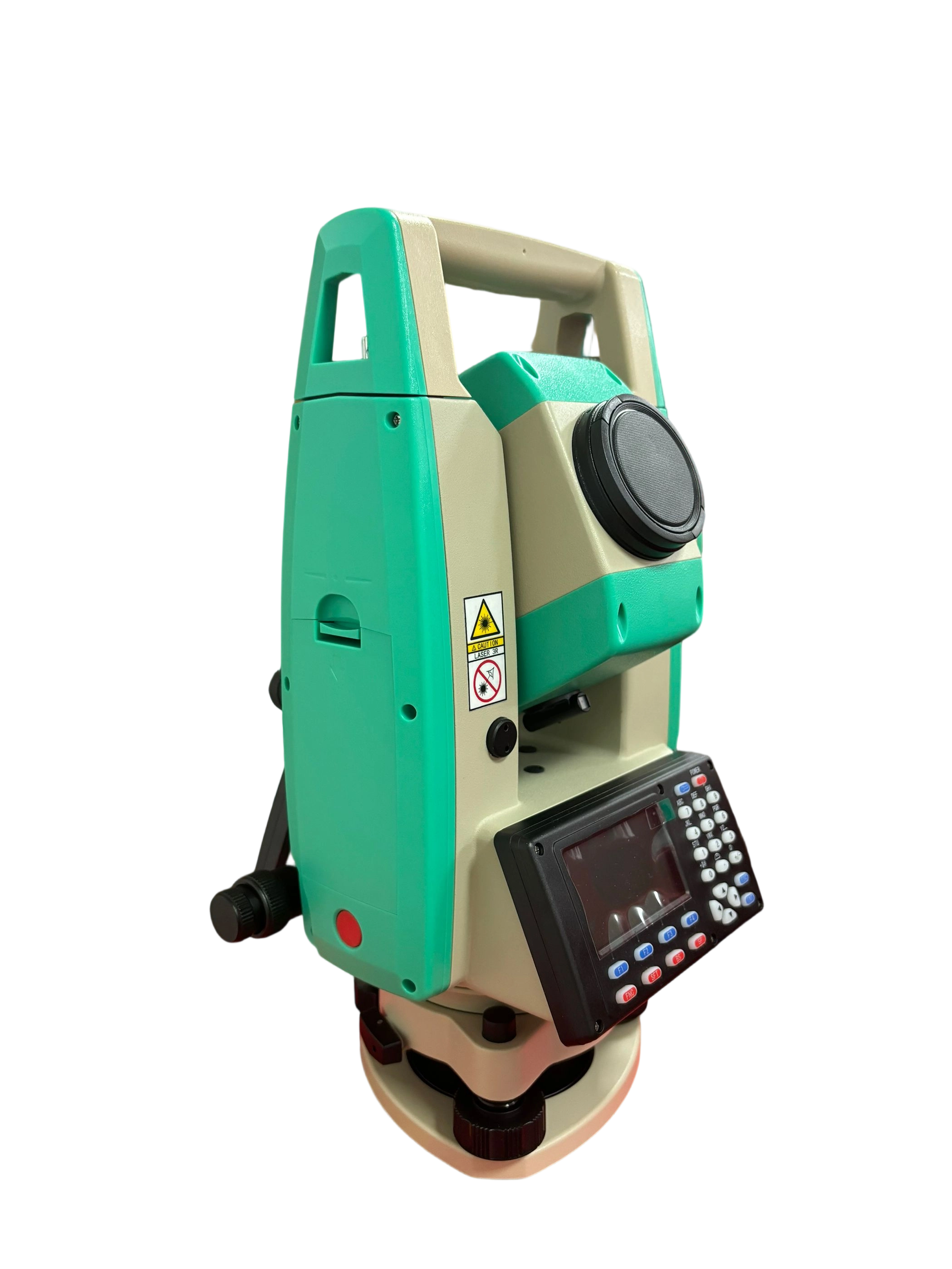

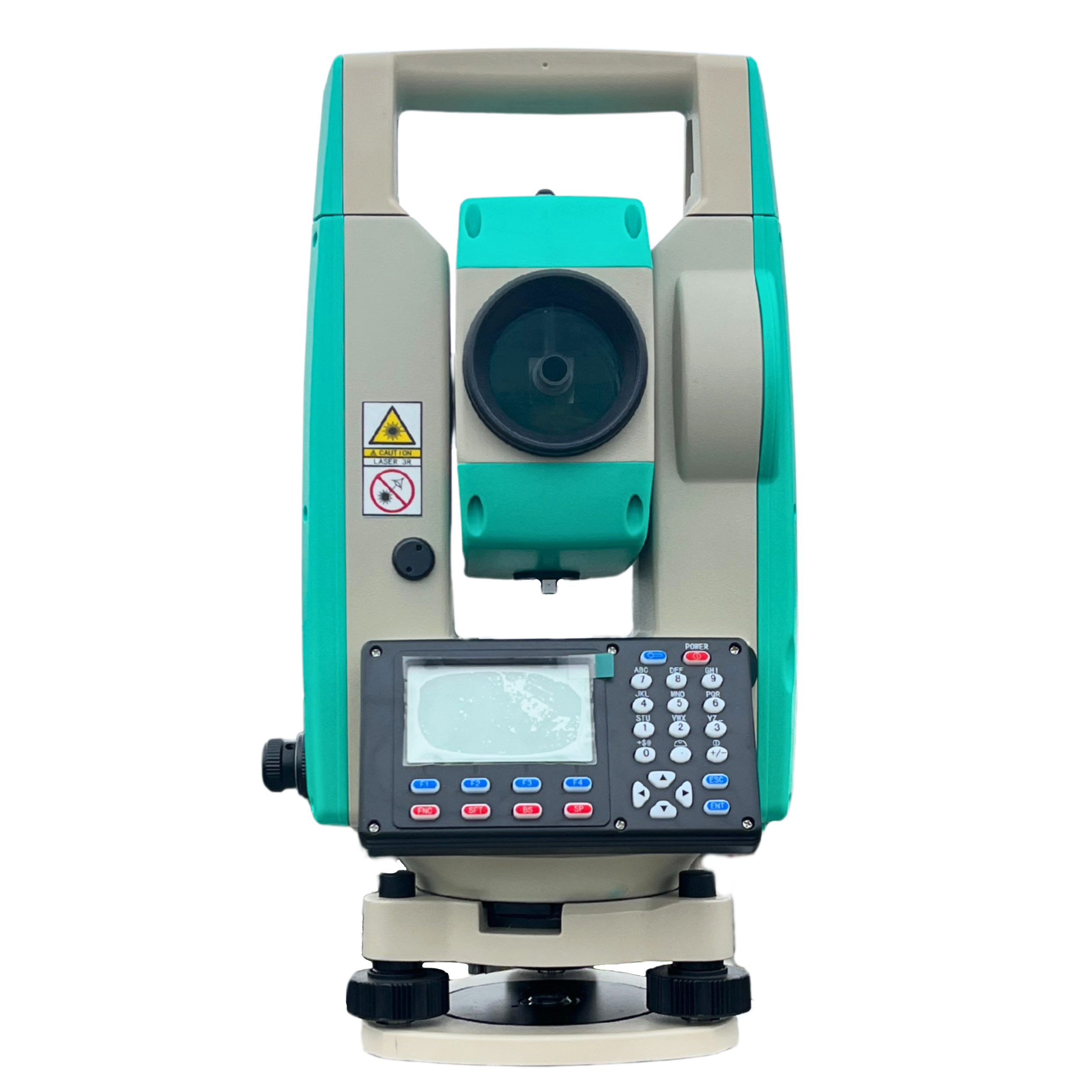

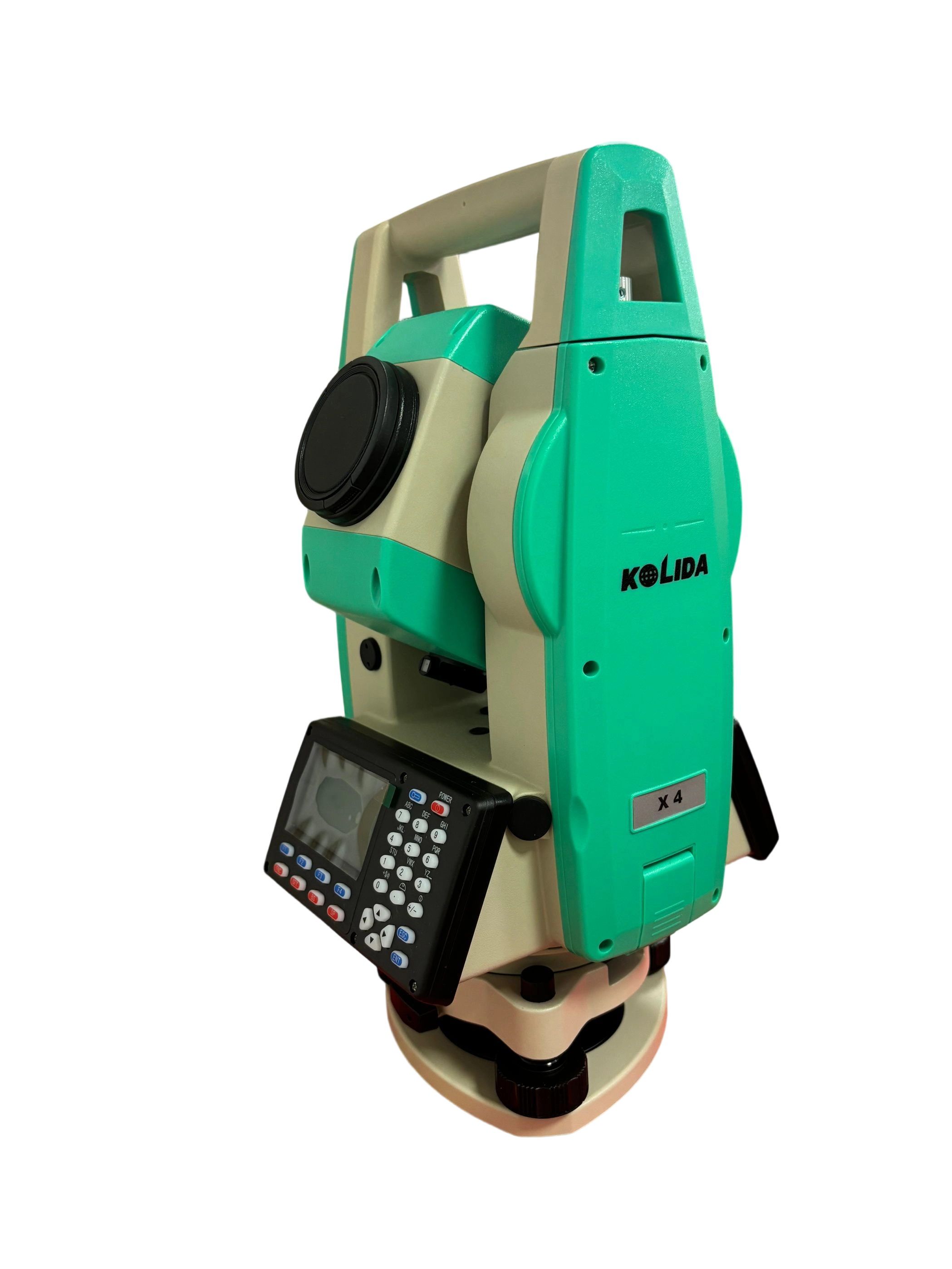

X4

X4

Models:X4

Seven Major Improvements! X4, new generation TS.
1000m

Reflectorless Range

xian.jpgDual-Axis

Compensation

xian.jpg5-10kmLong Distance Measurementxian.jpgBluetooth

Communication with external device






1637


Measures Longer and longer,

Improvement Never Settles!


How could we lift the ranging cabability to a new level of 1000m? The three key factors are "Dual-light Source Distance Measuring technology", optimization of the signal-to-noise ratio, a more stable objective lens system.


Video: 1000m Non-prism measurement in cloudy weather

https://www.youtube.com/watch?v=bpnFW2EdxVY

A New Step to be More Accurate,

Innovation Never Stops!


Every hard working surveyor deserves a higher precision than before.


Four innovations have been realized in our newly designed optical system to achieve this goal: "Focal Length Compensation Mirror", "Fully sealed emitting laser circuit", "Less reflectors in optical part", "the 4th Generation EDM CPU".


Articlehttp://www.kolidainstrument.com/news/details/id/113.html




2



微信图片_20210413142745

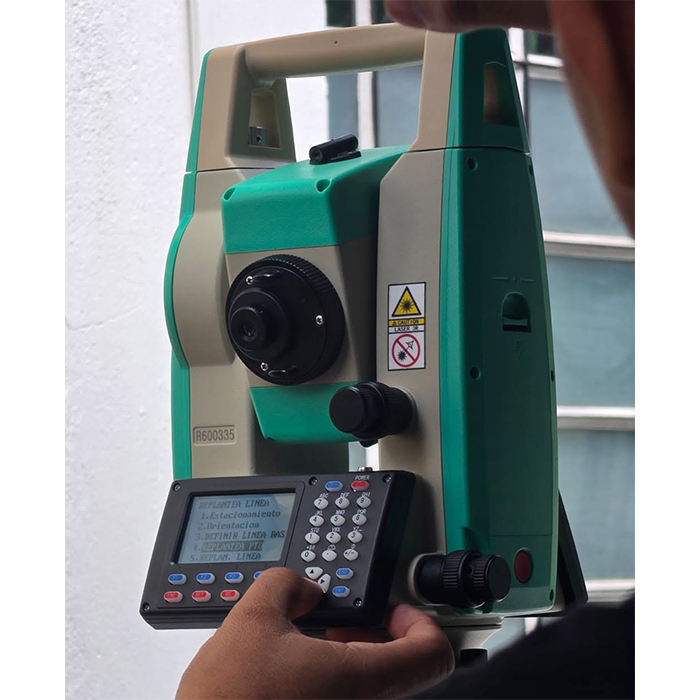

Practical Survey Program


Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: angle offset, angle repetition, dual-distance offset, coordinate measurement, REM, MLM, Staking out,area calculation, Road Design, etc.



Video: https://www.linkedin.com/pulse/operation-video-kts-442r6lc-andy-lau/




Compatible with FieldGenius


Working X4 with graphic mapping software such as Microsurvey FieldGenius will optimize your productivity.


Video: https://www.youtube.com/watch?v=28KH3YCzk14









Convenient Data Transfer


X4 supports USB/ Bluetooth connection. Special data transmission and editing software can quickly transfer data and save time.


User also can directly download measurement data from total station to USB flash memory disk, raw data/ coordinates/ .dxf all download in one time.



Video: https://www.youtube.com/watch?v=eN-lMAkm6kM


Bluetooth


External device can be linked to total station, through the Bluetooth™ wireless connection. Then users can use their PC/ tablet/ Data Controller with X4 total station and run mapping software to collect data.


Videohttps://www.youtube.com/watch?v=2_4rXK8orZY







Distance Measurement

Measurement Range1 prism:                   5000m3 prism:                   8000-10000mReflectorless:           1000/ 1500m

Accuracy

Prism:                  ±(2+2ppmx D)mmReflectorless:       ±(3+2ppmx D)mm

Measuring Time0.1 - 1.5s
Atmosphere CorrectionManual InputPrism Constant CorrectionManual Input









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading1"/ 5" optional
Compensator

Dual Axis Liquid-electricRange ±4', Accuracy 1"









User Interaction

Operation SystemDOS

Color ScreenN/A
Touch ScreenN/A

KeyboardFull Alphanumeric keys with backlight

Trigger KeyN/ABluetooth & wifiBluetooth
Internal Storage

12Mb, 120,000 points


External Storage

USB Flash Memory Disk







Working Capability

ProgramCoordinate measurement, setout, area, road design...

Graphic Display
N/A
Laser Pointer & Laser PlummetYes
Endurance

12 hours


Setout Guide Light

N/A


Camera Function

N/A





Distance Measurement

Measurement Range1 prism:                   5000m3 prism:                   8000-10000mReflectorless:           1000/ 1500m

Accuracy

Prism:                  ±(2+2ppmx D)mmReflectorless:       ±(3+2ppmx D)mm

Measuring Time0.1 - 1.5s
Atmosphere CorrectionManual InputPrism Constant CorrectionManual Input









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading1"/ 5" optional
Compensator

Dual Axis Liquid-electricRange ±4', Accuracy 1"









User Interaction

Operation SystemDOS

Color ScreenN/A
Touch ScreenN/A

KeyboardFull Alphanumeric keys with backlight

Trigger KeyN/ABluetooth & wifiBluetooth
Internal Storage

12Mb, 120,000 points


External Storage

USB Flash Memory Disk







Working Capability

ProgramCoordinate measurement, setout, area, road design...

Graphic Display
N/A
Laser Pointer & Laser PlummetYes
Endurance

12 hours


Setout Guide Light

N/A


Camera Function

N/A





See more specs
