CTS-662

CTS-662

Models:CTS-662R6/R10

This reliable, powerful model represents the latest total station technology of KOLIDA.
600/1000m

Reflectorless Range


TouchScreen


Colorful, Graphic Display

xian.jpgBluetoothWireless Communicationxian.jpgTrigger Key

Quick Measurement




3

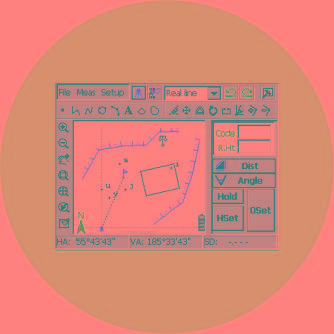

TOUCH SCREEN,

GRPHIC DISPLAY.




LCD touch screen display on both sides gives surveyors a clear, colourful and fully graphical environment, user can easily find details on the sketch map.






PRACTICAL

PROGRAM




Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: angle offset, angle repetition, dual-distance offset, coordinate measurement, REM, MLM, Staking out, Road Design, area calculation, volume calculation, COGO...







TEMPERATURE &

PRESSURE SENSORS





Temperature and pressure changes have a negative impact on the accuracy of distance measurements. The Smart T-P Sensor automatically monitors the changes and adjusts the distance calculations.



6



BLUETOOTH





An external controllers can be linked to total station, through the Bluetooth™ wireless connection.



11

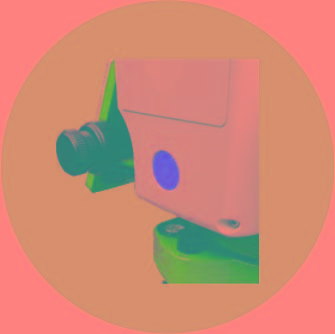

TRIGGER KEY




The trigger key on the side of the instrument allows users to start the measurement without moving sightline away from telescope. It avoids vibration on keyboard and increases measurement precision.


In winter it is difficult to use a gloved hand to push small buttons on total station keyboard. In this situation, trigger key is much more convenient than keyboard button.







LONG DISTANCE

MEASUREMENT





Thanks to the high efficiency EDM, 662 features long distance measurements: 600/1000m in reflectorless mode and up to 3500-4000m using a single prism, with millimeter accuracy.



edm


FAST, ACCURATE,

RELIABLE EDM





The fastest distance measuring speed is down to 0.1 to 0.3 second, with 2mm accuracy, makes any job extremely cost effective and reliable.




sd


LARGE MEMORY

EASY DATA

MANAGEMENT





The 98Mb internal memory is able to store 833,000 data blocks, the SD card up to 8 Gb can store a huge amount of data. Users don't need to worry about memory space.





RUGGED,

DURABLE.



IP55 dustproof/waterproof rating ensures 662's high reliability in all weather conditions and allows working even under very humid conditions and where sand and dust are present.

The high performance telescope, featurs 30X magnification and illuminated reticle, provide the best sighting quality in any lighting condition.




Distance Measurement

Measurement Range1 prism:                   3500-4000m3 prism:                    5000mReflectorless:           600/1000m

Accuracy

Prism:                  ±(2+2ppmx D)mmReflectorless:       ±(3+2ppmx D)mm

Measuring TimePrism:                  0.2 - 1.3sReflectorless:       0.5 - 3 s
Atmosphere CorrectionAutoPrism Constant CorrectionAuto









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading0.1"/ 1" optional
Compensator

Dual Axis Liquid-electricRange ±4', Accuracy 1"









User Interaction

Operation SystemLinux

Color ScreenYes, 3.5 inches LCD
Touch ScreenYes

Keyboard30 keys with backlight

Trigger KeyYes
Bluetooth & wifiBluetooth
Internal Storage

98MB, 833,000 data blocks


External Storage

8GB USB flash disk, 8GB SD card







Working Capability

ProgramCoordinate measurement, setout, area, volume, COGO, road design

Graphic Display
Yes
Laser Pointer & Laser PlummetYes
Endurance

8 hours


Setout Guide Light

Optional


Camera Function

300MP, optional





Distance Measurement

Measurement Range1 prism:                   3500-4000m3 prism:                    5000mReflectorless:           600/1000m

Accuracy

Prism:                  ±(2+2ppmx D)mmReflectorless:       ±(3+2ppmx D)mm

Measuring TimePrism:                  0.2 - 1.3sReflectorless:       0.5 - 3 s
Atmosphere CorrectionAutoPrism Constant CorrectionAuto









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading0.1"/ 1" optional
Compensator

Dual Axis Liquid-electricRange ±4', Accuracy 1"









User Interaction

Operation SystemLinux

Color ScreenYes, 3.5 inches LCD
Touch ScreenYes

Keyboard30 keys with backlight

Trigger KeyYes
Bluetooth & wifiBluetooth
Internal Storage

98MB, 833,000 data blocks


External Storage

8GB USB flash disk, 8GB SD card







Working Capability

ProgramCoordinate measurement, setout, area, volume, COGO, road design

Graphic Display
Yes
Laser Pointer & Laser PlummetYes
Endurance

8 hours


Setout Guide Light

Optional


Camera Function

300MP, optional
