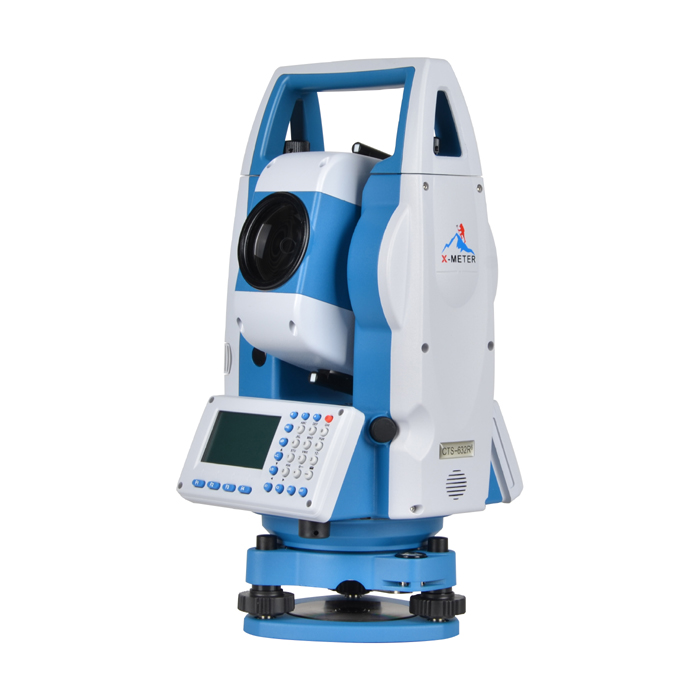

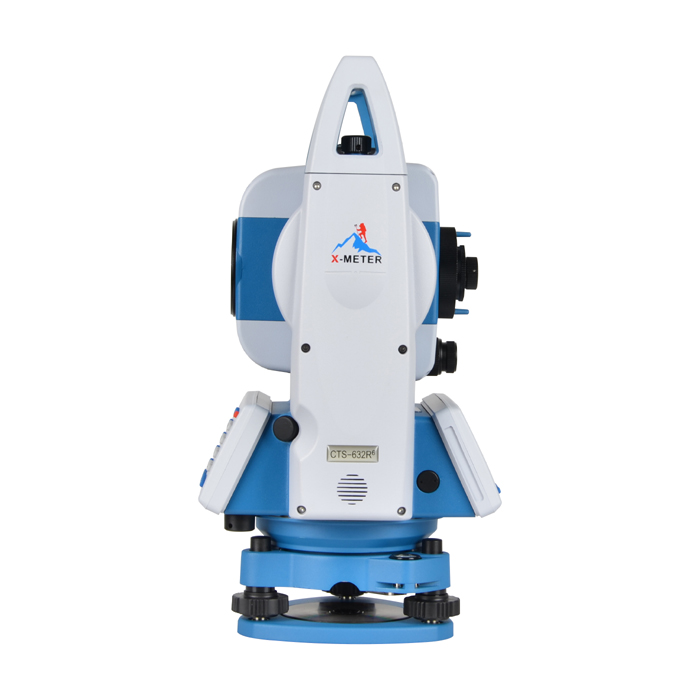

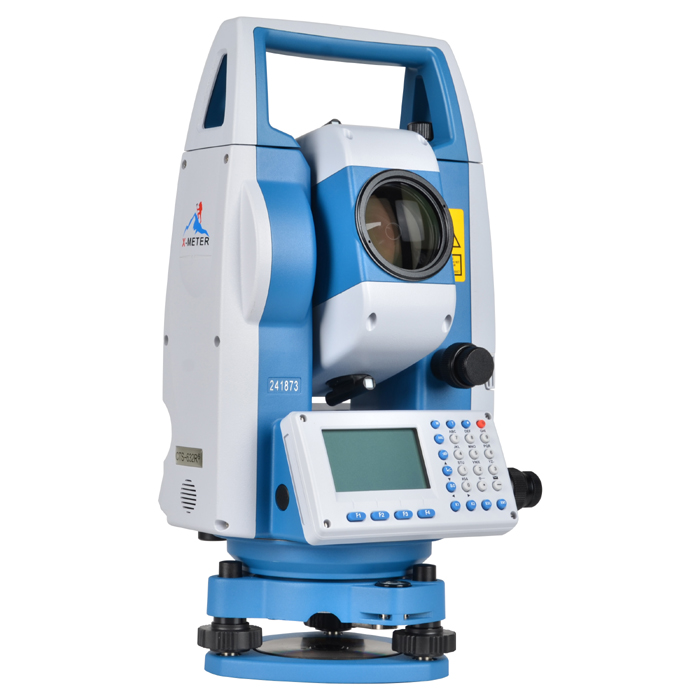

CTS-632R6

CTS-632R6

Models:CTS-632R6

High cost-effective Engineering Total Station with newly upgraded EDM and compensator, perfect for your works!
600m

Reflectorless Range


Clear EDM view


Newly upgraded EDM

xian.jpgPractical Survey programSurveying & Editingxian.jpgTough and Reliable

Stable performance in all environment



Advanced Hardware,

Top Performance


Cost-Effective choice for your surveying and engineering tasks, its long range EDM, density ball bearing axis system, high accuracy angle measurement module represent the highest level of manufacturing skill of China.


Video: 500m Non-prism measurement in cloudy weather:

https://www.youtube.com/watch?v=D1bLO8n3mXQ



Practical Survey Program

Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: angle offset, angle repetition, dual-distance offset, coordinate measurement, REM, MLM, Staking out,area calculation, Road Design, etc.

Videohttps://www.youtube.com/watch?v=3nr1SRstLXk


         2
         数据传输截图

Convenient Data Transmission Software


CTS-632R6 supports Mini USB / Serial port cable connection.

Special data transmission and editing software can quickly transfer data and save time. You can design roads and export to CTS-632R6 for LAYOUT swiftly. Multiple data formats are supported.


Video: https://www.youtube.com/watch?v=o-R6wtF4p8k





Temp. & Pressure

Auto Setting

Temperature and pressure changes make a negative impact on the accuracy of distance measurements. The Smart T-P Sensor automatically monitors the changes and adjusts the distance calculations.


           tp



Distance Measurement

Measurement RangeReflectorless:           600mSingle prism:           5000m

Accuracy

Prism:                  ±(2+2ppmx D) mmReflectorless:       ±(3+2ppmx D)mm

Measuring TimeFine:                 1.2sTracking:          0.2s
Atmosphere CorrectionAutoPrism Constant CorrectionAuto









Angle Measurement

Measurement MethodAbsolute Encoding

Accuracy2"
Minimum Reading1"
Compensator

Dual Axis Liquid-electricRange ±6', Accuracy 1"









User Interaction

Operation SystemDos

Color ScreenN/ATouch ScreenN/A

Keyboard28 keys with backlight

Function KeyYes
Bluetooth & wifiN/A
Internal Storage

16000 Points


External Storage

8GB SD card







Working Capability

ProgramCoordinate measurement, setout, area, road design...

Graphic Display
N/A
Laser Pointer & Laser PlummetYes
Endurance

8 hours


Setout Guide Light

Optional


Camera Function

N/A





Distance Measurement

Measurement RangeReflectorless:           600mSingle prism:           5000m

Accuracy

Prism:                  ±(2+2ppmx D) mmReflectorless:       ±(3+2ppmx D)mm

Measuring TimeFine:                 1.2sTracking:          0.2s
Atmosphere CorrectionAutoPrism Constant CorrectionAuto









Angle Measurement

Measurement MethodAbsolute Encoding

Accuracy2"
Minimum Reading1"
Compensator

Dual Axis Liquid-electricRange ±6', Accuracy 1"









User Interaction

Operation SystemDos

Color ScreenN/ATouch ScreenN/A

Keyboard28 keys with backlight

Function KeyYes
Bluetooth & wifiN/A
Internal Storage

16000 Points


External Storage

8GB SD card







Working Capability

ProgramCoordinate measurement, setout, area, road design...

Graphic Display
N/A
Laser Pointer & Laser PlummetYes
Endurance

8 hours


Setout Guide Light

Optional


Camera Function

N/A





See more specs
