Supports survX, EGSTAR and GISTAR |  | 1280x720 dpi | | | Resistant to 1.5m fall |

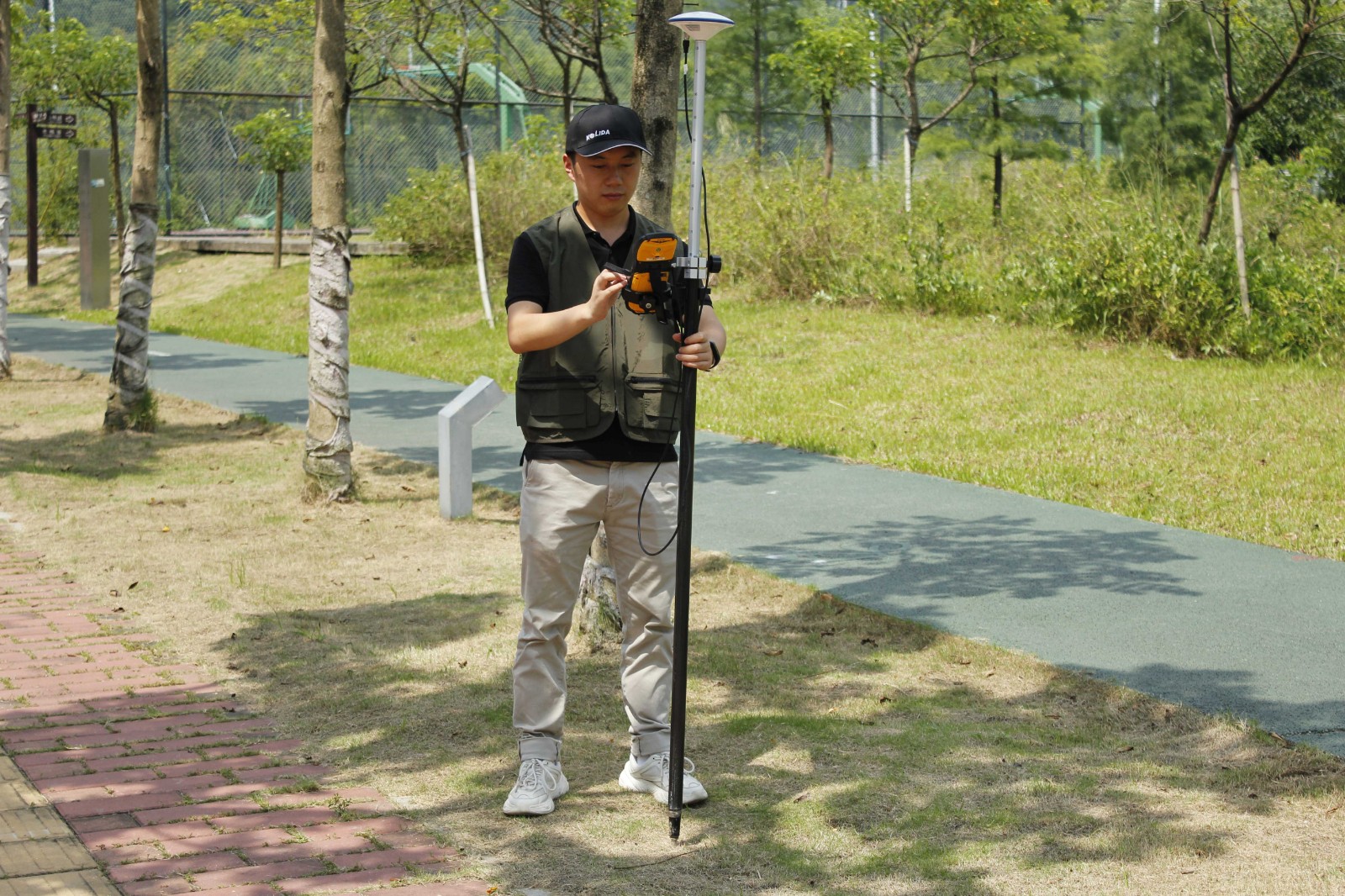

 | External Antenna External antenna makes the positioning more accurate and flexible. Users can set up the external antenna at the top of the car, and drive to collect data. |

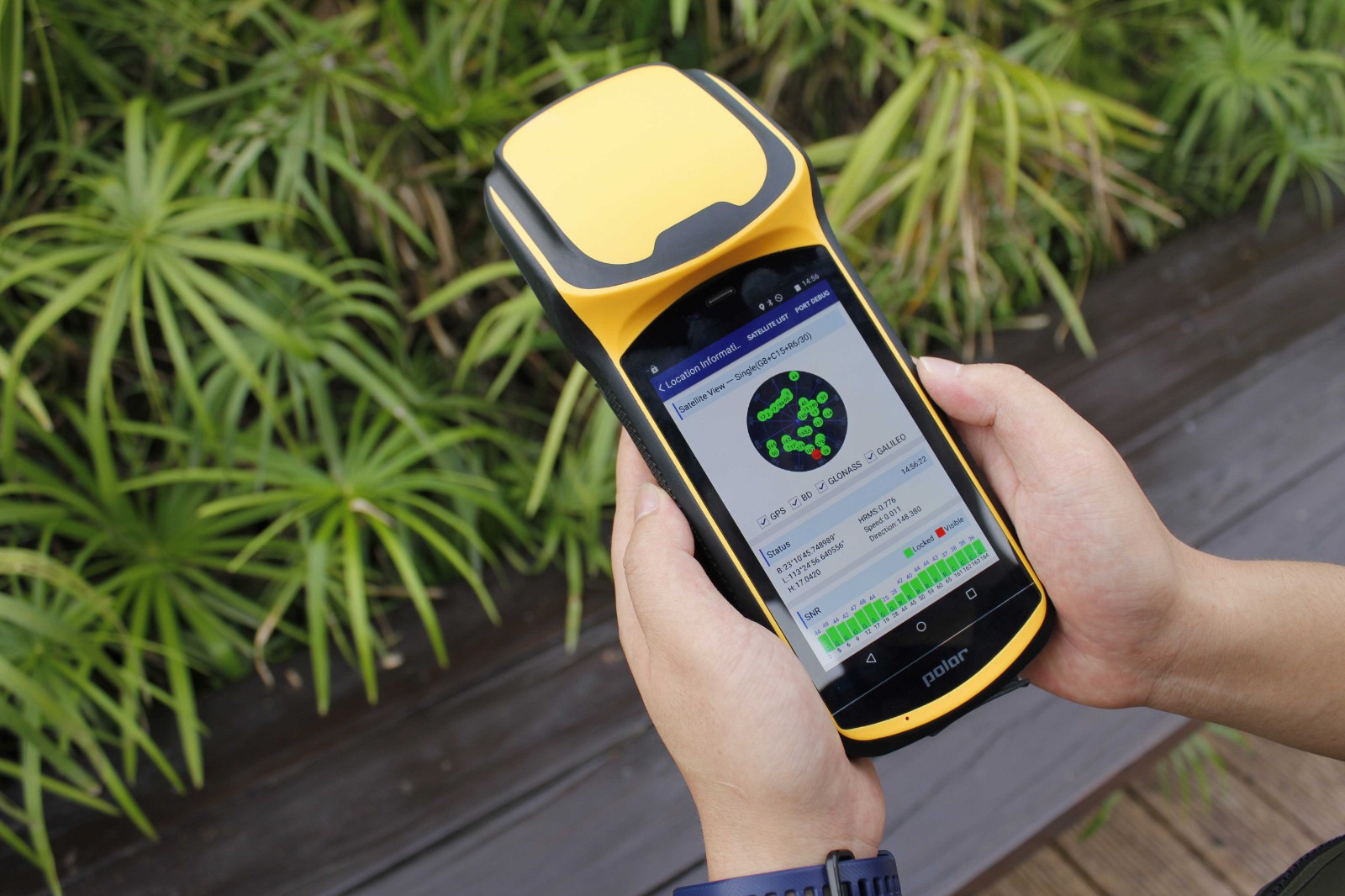

Multi-Constellations Under hash environment, K6s can still detect Multi-Constellations and have a fast initialization. After connecting to differential correction source, K6s can get sub-meter accuracy. |  |
 | Laser Centering The laser transmitted from the bottom of K6s helps us find the right location for point collect and stakeout. |

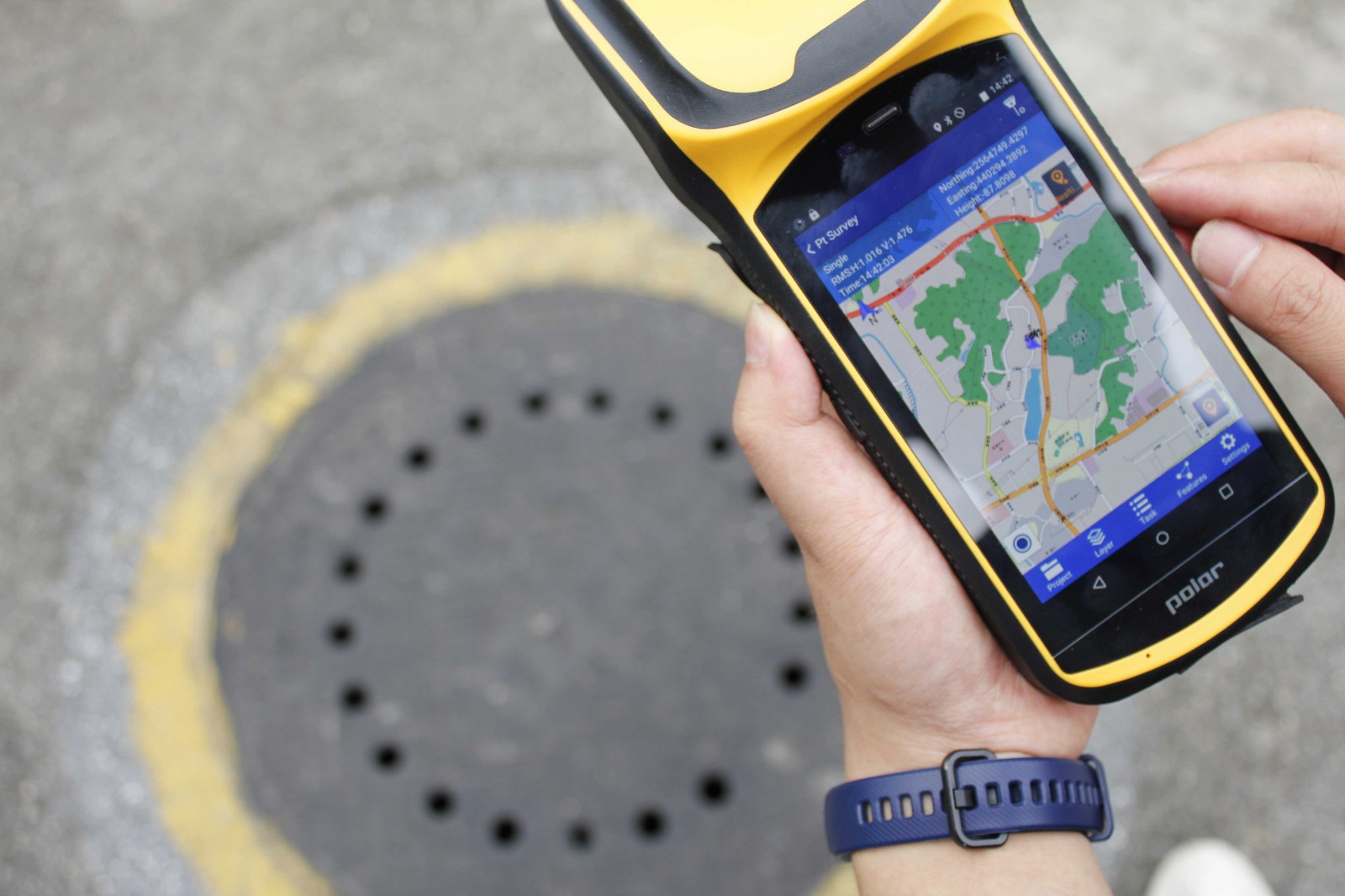

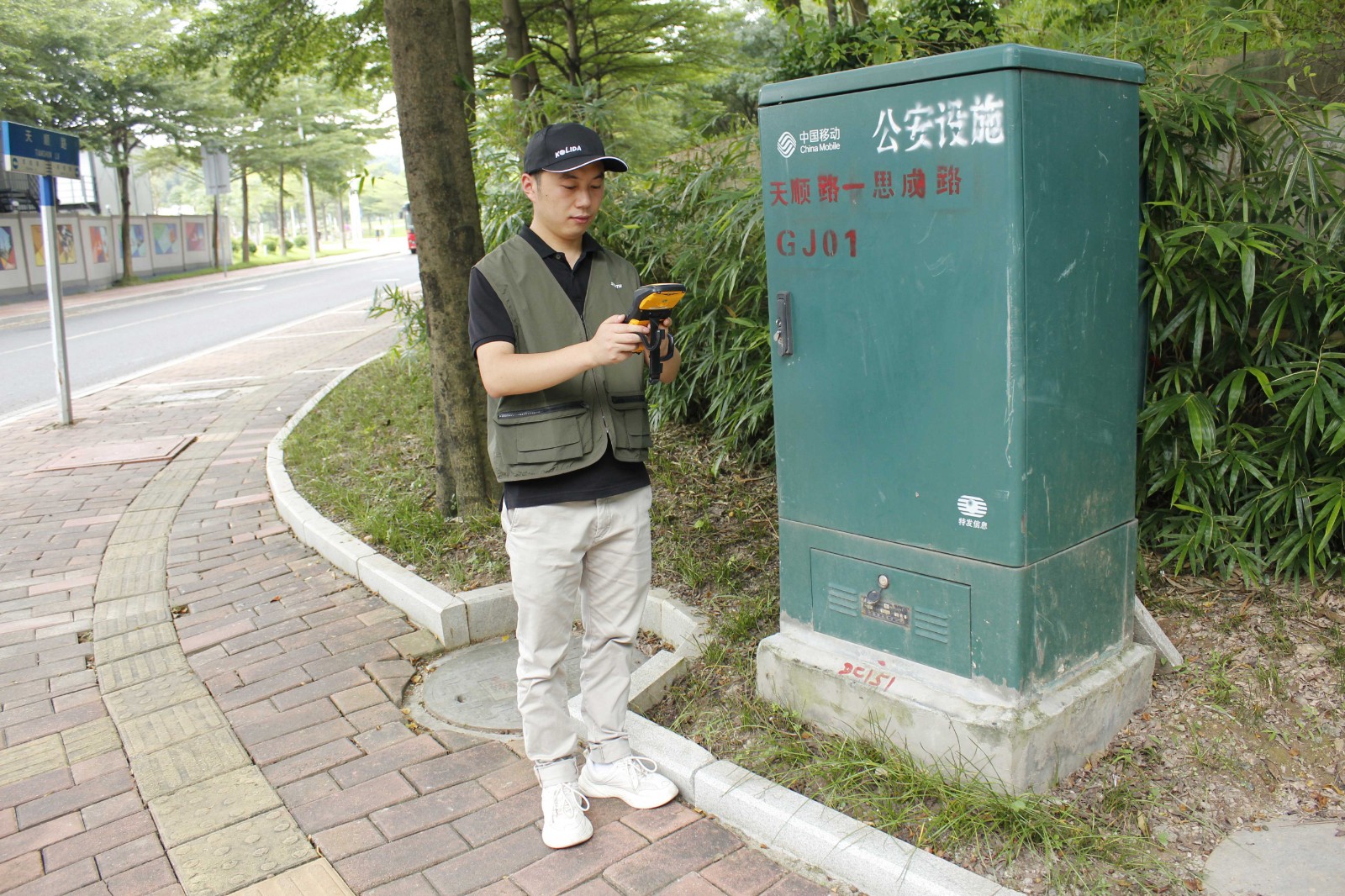

Perfect for GIS In GIStar app, K6s can collect data along with its properties. And the small size and light weight makes K6s portable to collect GIS data in the fields. |  |
Unboxing and operation video:https://www.linkedin.com/pulse/how-does-kolida-k6-gis-data-collector-work-andy-lau
| Processor & Memory | ||
CPUOcta-core 1.5GHz | RAM3GB | |
| Built-in Storage Space32GB | Exterdable Storage Spaceup to 128GB | |
| Display | ||
Screen TypeCapacitive Touch Screen | Resolution1280x720 dpi | Size5.0 inches |
| User Interaction | ||
Operation SystemAndroid 5.1 | BluetoothYes, 4.0 | WifiYes |
| Built-in GPS 220 channels, GPS L1, GLONASS L1, BDS L1, SBAS | Camera Yes, 8MP auto focus | Sim Card Supports 4G LTE, 3G WCDMA, 2G GPRS/EDGE |
Accuracy Single point positioning: 2.5mSBAS<1mRealtime differential< 0.5m (CEP) | External Antenna Optional | |
| Working Capability | ||
| Endurance 10 hours (7200mAh battery capacity) | OTG Function (Field Download) yes | Proof Level IP68 |
| Processor & Memory | ||
CPUOcta-core 1.5GHz | RAM3GB | |
| Built-in Storage Space32GB | Exterdable Storage Spaceup to 128GB | |
| Display | ||
Screen TypeCapacitive Touch Screen | Resolution1280x720 dpi | Size5.0 inches |
| User Interaction | ||
Operation SystemAndroid 5.1 | BluetoothYes, 4.0 | WifiYes |
| Built-in GPS 220 channels, GPS L1, GLONASS L1, BDS L1, SBAS | Camera Yes, 8MP auto focus | Sim Card Supports 4G LTE, 3G WCDMA, 2G GPRS/EDGE |
Accuracy Single point positioning: 2.5mSBAS<1mRealtime differential< 0.5m (CEP) | External Antenna Optional | |
| Working Capability | ||
| Endurance 10 hours (7200mAh battery capacity) | OTG Function (Field Download) yes | Proof Level IP68 |
See more specs
1489
K6s-20190712.pdf
PDF [11.9MB] download
