K5plus+

K5plus+

Models:K5plus+, K5plus+ 2018

Maxwell 6 technology, 220 channels, dual battery hot-swappable
Maxwell 6

Positioning Technology

xian.jpg220 Channels

All Constellation Signal Tracking

xian.jpgC.O.R.SWork as Network Reference Stationxian.jpgDual Batteries

Hot-swappable & Extra Power Source


bfree


Barrier-Free

Measurement


In difficult environment you may lost connection with base station or VRS network. Don't be disappointed, you can choose from 3 creative work modes to continue surveying without interruption. (Repeater/ Router/ Mobile Refenrence Station)

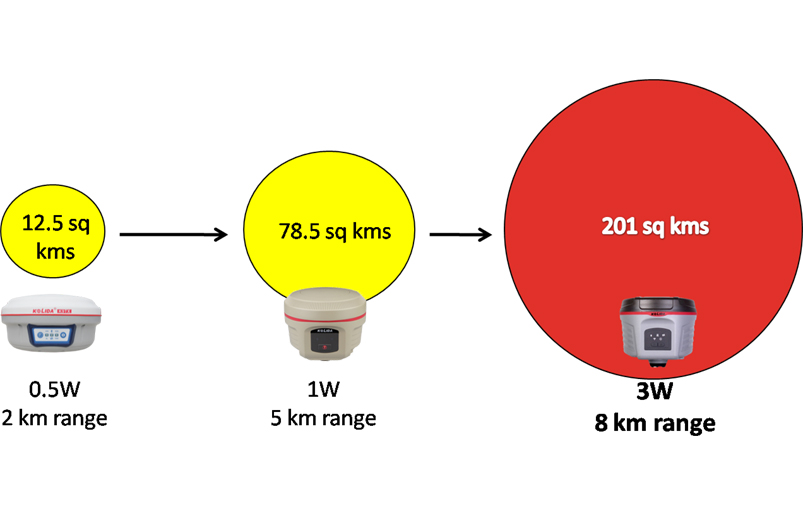

Long Range

Radio Link



SDL400 built-in radio can send signal as far as 7 km in urban area, 8 km in suburban. The maximum coverage is up to 200 sq.km, suitable to have multiple rovers work simultaneously.

5p1



Anti-interference


SDL400 built-in radio features anti-interference capability, so K5plus+ can work close to power plant, transformer substation, mobile signal tower and other interference source.



The Best in Town


To improve the performance in city survey, R&D team upgraded the network module from 3G to 4G.


Under 4G mobile network, data transmission is faster and more stable. SUPER RTK is still compatible with 3G and 2G.



2



Increased

Working hours


Two units of 3400 mAh battery hot-swappable

& 6800 mAh Battery Rod included in Base Receiver set

External Battery Case (optional)



Practical Functions

See what others can't. K5plus+ employs Linux system, it helps surveyors to accomplish their missions easier, faster and more accurate by delivering exceptional quality and innovative features.








1

6a

New app.   New Productivity

Windows CE data controller is too old technology?

No problem. Simply download SurvX App on your smart phone or tablet.

Enjoy the smooth operation of Android platform !


Post-processing Sw.   Free of Charge

KOLIDA GEO Office integrates

static data processing & Kinematic data adjustment


Satellite Tracking Ability

Channels220

ConstellationGPS, GLONASS, BEIDOU, GALILEO, SBASMSS L-BandN/A
Positioning Output Rate1Hz-50HzInitialization Time<10s









Positioning Precision

UHF RTKHorizontal ±8mm + 1 ppmVertical      ±15mm + 1ppm

Network RTKHorizontal ±8mm + 0.5ppmVertical      ±15mm+0.5ppmRTXHorizontal ±2cmVertical      ±5cm
Static and Fast Static

Horizontal ±2.5mm + 0.5ppmVertical      ±5mm + 0.5ppm


RTK Initialization Time


2-8s







User Interaction

Operation SystemLinux

Web UIYes
WifiYes
Voice Guide

Yes


Data Storage

8GB internal; up to 32GB external.







Working Capability

RadioBuilt-in emitting and receivingTypical working range 1-8km

Tilt Survey
Yes, ±30°
Electronic BubbleYes
Endurance

>14 hours (static mode), >10 hours (internal UHF base mode), >12 hours (rover mode)


OTG Function (Field Download)

yes


Other Function

Mobile Reference Station, Repeater, Router, CSD





Satellite Tracking Ability

Channels220

ConstellationGPS, GLONASS, BEIDOU, GALILEO, SBASMSS L-BandN/A
Positioning Output Rate1Hz-50HzInitialization Time<10s









Positioning Precision

UHF RTKHorizontal ±8mm + 1 ppmVertical      ±15mm + 1ppm

Network RTKHorizontal ±8mm + 0.5ppmVertical      ±15mm+0.5ppmRTXHorizontal ±2cmVertical      ±5cm
Static and Fast Static

Horizontal ±2.5mm + 0.5ppmVertical      ±5mm + 0.5ppm


RTK Initialization Time


2-8s







User Interaction

Operation SystemLinux

Web UIYes
WifiYes
Voice Guide

Yes


Data Storage

8GB internal; up to 32GB external.







Working Capability

RadioBuilt-in emitting and receivingTypical working range 1-8km

Tilt Survey
Yes, ±30°
Electronic BubbleYes
Endurance

>14 hours (static mode), >10 hours (internal UHF base mode), >12 hours (rover mode)


OTG Function (Field Download)

yes


Other Function

Mobile Reference Station, Repeater, Router, CSD
