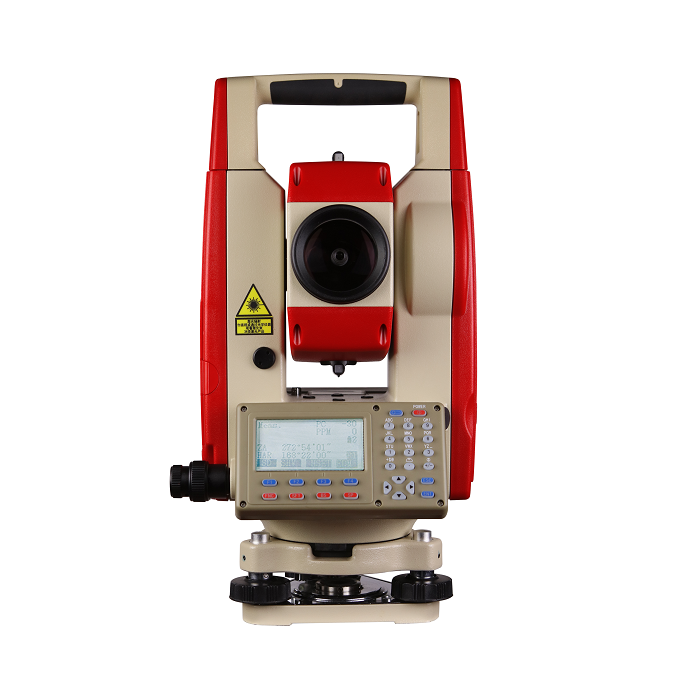

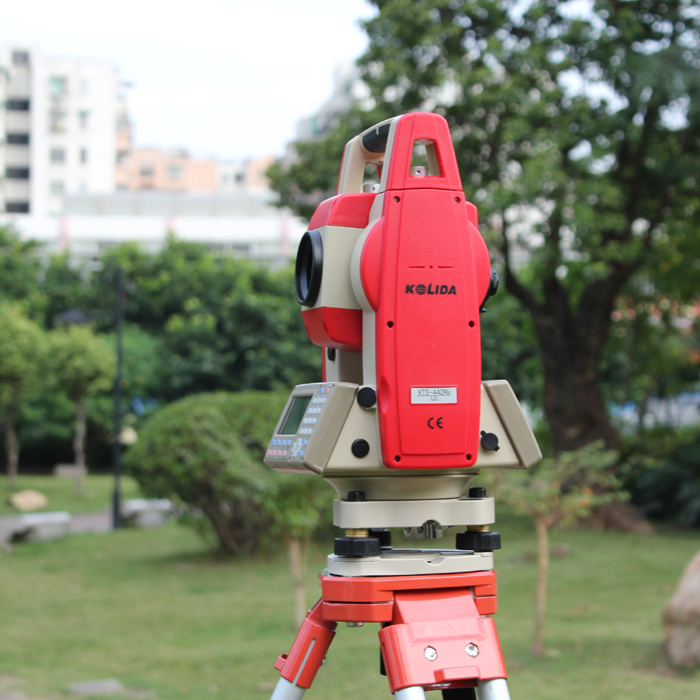

KTS-442R6LC (Discontinued in 2020)
Reflectorless Range | Compensation | Communication with external device |
LONG DISTANCE MEASUREMENT | Thanks to the high efficiency EDM, 442R6 features long distance measurements: 800m in reflectorless mode and up to 5000m using a single prism, with millimeter accuracy. |
FAST, ACCURATE, RELIABLE EDM | The fastest distance measuring speed is down to 0.1 to 0.3 second, with 2mm accuracy, makes any job extremely cost effective and reliable. |
LARGE MEMORY EASY DATA MANAGEMENT | The 4Mb internal memory is able to store 40,000 points, the SD card up to 32 Gb can store a huge amount of data. Users don't need to worry about memory space. Easily operation on data adding, deleting, modifying, transferring.Total station can be recognized as a flash memory disk by PC. |
RUGGED, DURABLE. | IP55 dustproof/waterproof rating ensures 442's high reliability in all weather conditions and allows working even under very humid conditions and where sand and dust are present. The high performance telescope, featurs 30X magnification and illuminated reticle, provide the best sighting quality in any lighting condition. |
VERSATILE, PRACTICAL PROGRAM | Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: angle offset, angle repetition, dual-distance offset, coordinate measurement, REM, MLM, Staking out, Road Design, area calculation, reference line, point projection, setting out Arc... |
BLUETOOTH | External device can be linked to total station, through the Bluetooth™ wireless connection. Then users can use their mapping software (Windows Mobile or Android, Field Genius or SurvX) with 442 total station. (this function is only available with the instruments which are produced after April 2019) |
Operation Video:
https://www.linkedin.com/pulse/operation-video-kts-442r6lc-andy-lau/
Distance Measurement | ||
Measurement Range1 prism: 5000m3 prism: 8000-10000mReflectorless: 800m | Accuracy Prism: ±(2+2ppmx D)mmReflectorless: ±(3+2ppmx D)mm | Measuring Time0.1 - 1.5s |
Atmosphere CorrectionManual Input | Prism Constant CorrectionManual Input | |
Angle Measurement | ||
Measurement MeAbsolute Encoding | Accuracy2" | Minimum Reading1"/ 5" optional |
Compensator Dual Axis Liquid-electricRange ±4', Accuracy 1" | ||
User Interaction | ||
Operation SystemDOS | Color ScreenN/A | Touch ScreenN/A |
KeyboardFull Alphanumeric keys with backlight | Trigger KeyN/A | Bluetooth & wifiBluetooth |
Internal Storage 4Mb, 40,000 points | External Storage up to 32GB SD card | |
Working Capability | ||
ProgramCoordinate measurement, setout, area, road design... | Graphic Display N/A | Laser Pointer & Laser PlummetYes |
Endurance 12 hours | Setout Guide Light N/A | Camera Function N/A |
Distance Measurement | ||
Measurement Range1 prism: 5000m3 prism: 8000-10000mReflectorless: 800m | Accuracy Prism: ±(2+2ppmx D)mmReflectorless: ±(3+2ppmx D)mm | Measuring Time0.1 - 1.5s |
Atmosphere CorrectionManual Input | Prism Constant CorrectionManual Input | |
Angle Measurement | ||
Measurement MeAbsolute Encoding | Accuracy2" | Minimum Reading1"/ 5" optional |
Compensator Dual Axis Liquid-electricRange ±4', Accuracy 1" | ||
User Interaction | ||
Operation SystemDOS | Color ScreenN/A | Touch ScreenN/A |
KeyboardFull Alphanumeric keys with backlight | Trigger KeyN/A | Bluetooth & wifiBluetooth |
Internal Storage 4Mb, 40,000 points | External Storage up to 32GB SD card | |
Working Capability | ||
ProgramCoordinate measurement, setout, area, road design... | Graphic Display N/A | Laser Pointer & Laser PlummetYes |
Endurance 12 hours | Setout Guide Light N/A | Camera Function N/A |
See more specs
