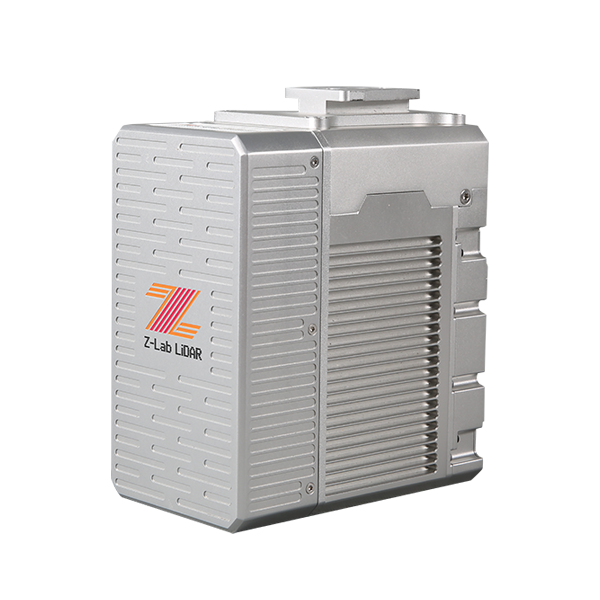

Z-Lab LiDAR-eco

Z-Lab LiDAR-eco

Models:Z-Lab LiDAR-eco

An Economical Solution Tailored to LiDAR Beginners
260 m

Laser Measurement Range

xian.jpg<0.05

Angle Resolution(Horizontal/Azimuth)

xian.jpg1.59 kg


Net Weight(w/o camera)

xian.jpgDown to 2 cm

Relative Accuracy

Solid State

Scanner Sensor Type


480,000 Pts/S


Measurement Rate

xian.jpg905 nmWavelengthxian.jpg50-150 m

Recommended scanning height AGL


LiDAR System

Working Rangemax. 260m

Working Speed≤40km/ hMax. Meas. Rate240,000 pts per sec (single return); 480,000 pts per sec (dual return)
Accuracy

down to 5cm, typical 10-20 cm

Weightapprox. 1.59 kg

Dimension77 x 115 x 208 mm

Constellation Support

GPS/Glonass/Beidou

Gyroscope Bias Stability±3 deg/hr

Gyroscope Range±490 deg/sec in all axis

Accelerometer Range

±16 g in all axis

Angular Resolution<0.05 deg (1σ)Field of View81.7° (H.) × 25.1° (V.)
TemperatureOperating 0℃ to 40ProtectionIP67






Laser Scanner

Safety ClassClass 1 (IEC 60825-1:2014)

Scanner Typesolid state sensorScanner Precisionoptimal 2 cm







LiDAR System

Working Rangemax. 260m

Working Speed≤40km/ hMax. Meas. Rate240,000 pts per sec (single return); 480,000 pts per sec (dual return)
Accuracy

down to 5cm, typical 10-20 cm

Weightapprox. 1.59 kg

Dimension77 x 115 x 208 mm

Constellation Support

GPS/Glonass/Beidou

Gyroscope Bias Stability±3 deg/hr

Gyroscope Range±490 deg/sec in all axis

Accelerometer Range

±16 g in all axis

Angular Resolution<0.05 deg (1σ)Field of View81.7° (H.) × 25.1° (V.)
TemperatureOperating 0℃ to 40ProtectionIP67






Laser Scanner

Safety ClassClass 1 (IEC 60825-1:2014)

Scanner Typesolid state sensorScanner Precisionoptimal 2 cm







See more specs
