680N

680N

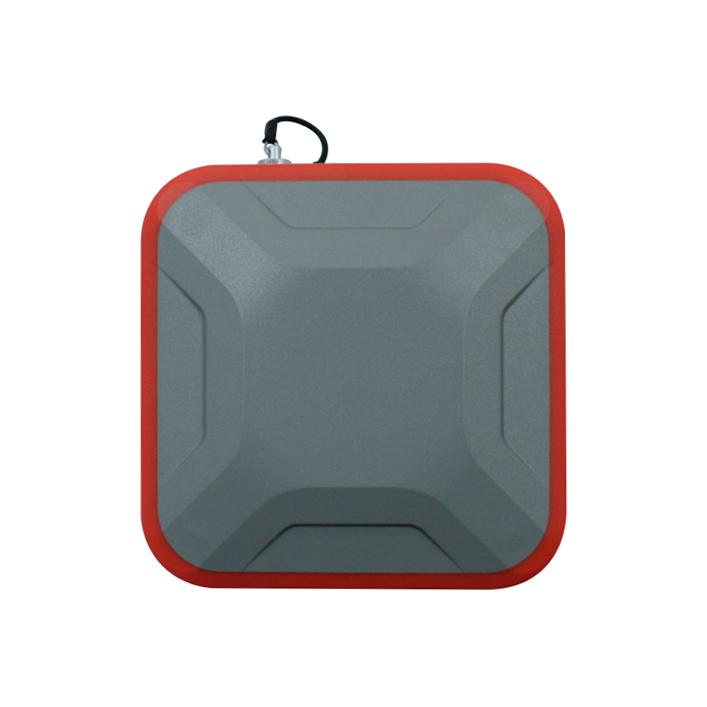

Models:S680N, K680N

Network Rover, BD940, 336 channels, L band.
Maxwell 7

Positioning Technology

xian.jpg336Channels

All Constellation Signal Tracking

xian.jpgL BandOminiSTAR and RTX supportxian.jpg540g

Extra light weight


            smallk3

The Most Advanced

Mini Size GNSS Chip


The BD940 is a triple frequency 336 channels receiver that delivers the quickest and most reliable RTK and RTX initializations for centimeter positioning. The BD940 reduces radiated emissions which speeds compliance certification and time to market. It provides assurance of long-term future-proofing and trouble-free operation.

Extra Light,

but Powerful.

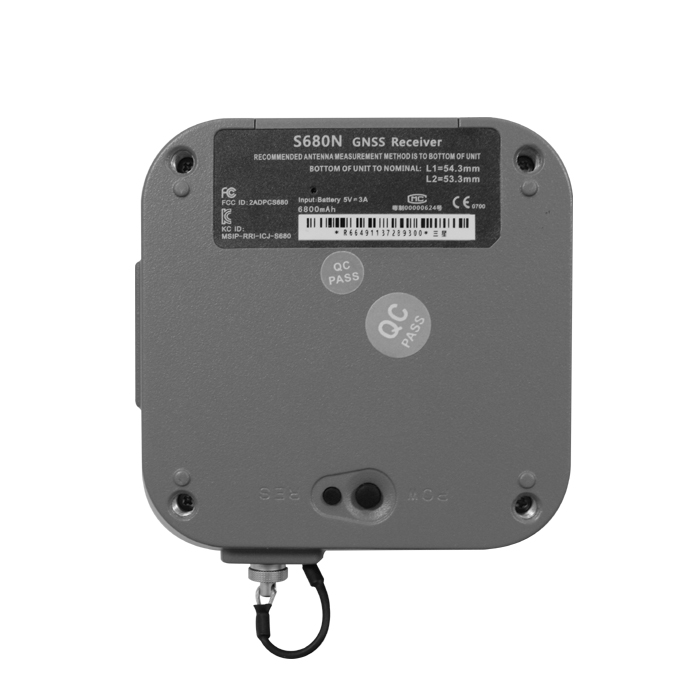

S680N is only 540 grams but has a 6800mAh built-in battery, it has better endurance than ordinary RTK.

User can use a smart phone to operate, no need of professional controller.


User can use power bank to recharge it in the field, no need of professional power source.

680n


6802


The Simplest

In the World.

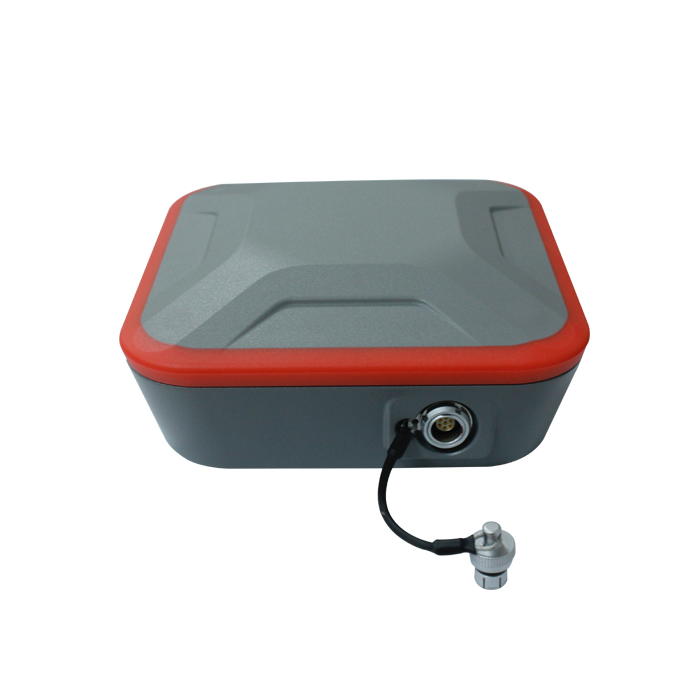

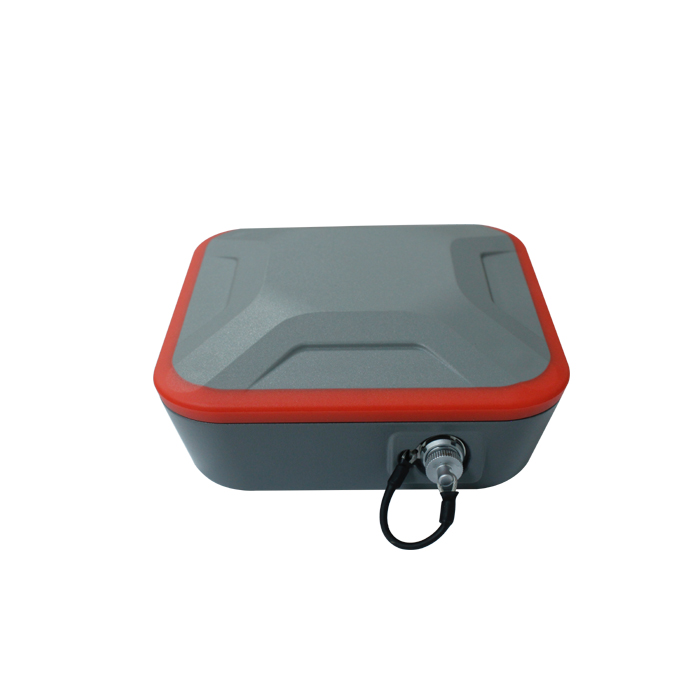

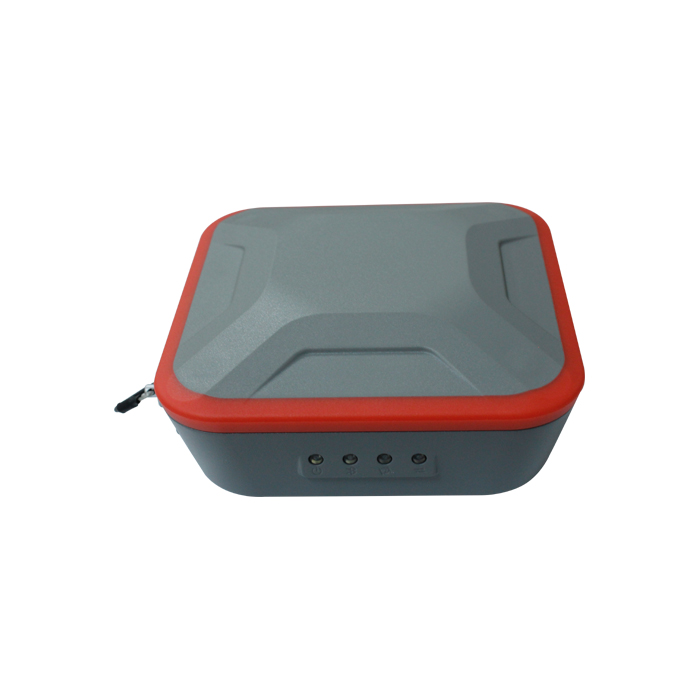

S680N has only two Keys and one Port.

Free data collection App Gistar is included in the package.



Practical Functions

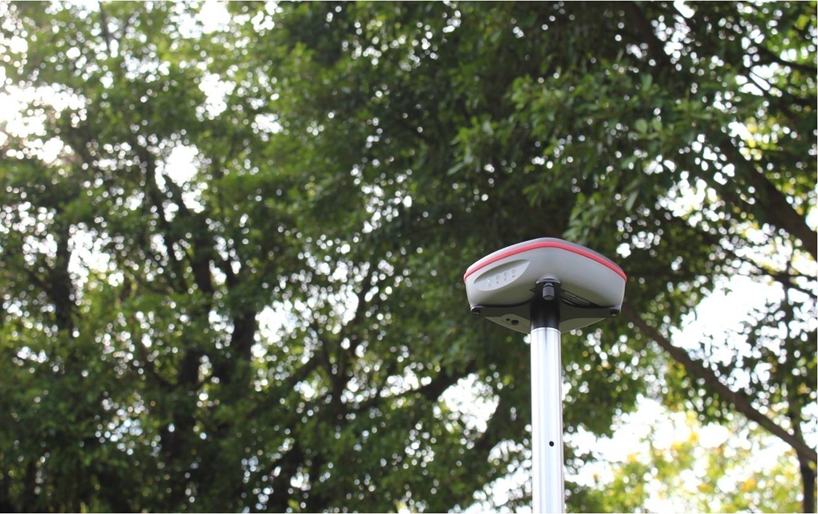

S680N can works as network rover and static receivers.







1

6a

New app.   New Productivity

Windows CE data controller is too old technology?

No problem. Simply download SurvX App on your smart phone or tablet.

Enjoy the smooth operation of Android platform !


Post-processing Sw.   Free of Charge

KOLIDA GEO Office integrates

static data processing & Kinematic data adjustment


Satellite Tracking Ability

Channels336

ConstellationGPS, GLONASS, BEIDOU, GALILEO, SBAS, QZSS, MSS L-BandTrimble RTX, OminiSTAR
Positioning Output Rate1Hz-50HzInitialization Time<8s









Positioning Precision

Network RTKHorizontal ±8mm + 0.5 ppmVertical      ±15mm + 0.5ppm

RTXHorizontal ±10cmVertical      ±20cmStatic and Fast StaticHorizontal ±2.5mm + 0.5ppmVertical      ±5mm + 0.5ppm
RTK Initialization Time

2-8s











User Interaction

Operation SystemLinux

Web UIYes
WifiYes
Voice Guide

Yes


Data Storage

8GB internal;







Working Capability

RadioN/A

Tilt Survey
N/A
Electronic BubbleN/A
Endurance

8 hours


OTG Function (Field Download)

yes


Other Function

Mobile Reference Station (wifi)





Satellite Tracking Ability

Channels336

ConstellationGPS, GLONASS, BEIDOU, GALILEO, SBAS, QZSS, MSS L-BandTrimble RTX, OminiSTAR
Positioning Output Rate1Hz-50HzInitialization Time<8s









Positioning Precision

Network RTKHorizontal ±8mm + 0.5 ppmVertical      ±15mm + 0.5ppm

RTXHorizontal ±10cmVertical      ±20cmStatic and Fast StaticHorizontal ±2.5mm + 0.5ppmVertical      ±5mm + 0.5ppm
RTK Initialization Time

2-8s











User Interaction

Operation SystemLinux

Web UIYes
WifiYes
Voice Guide

Yes


Data Storage

8GB internal;







Working Capability

RadioN/A

Tilt Survey
N/A
Electronic BubbleN/A
Endurance

8 hours


OTG Function (Field Download)

yes


Other Function

Mobile Reference Station (wifi)
