Z-Lab LiDAR-wiz

Z-Lab LiDAR-wiz

Models:LiDAR-wiz

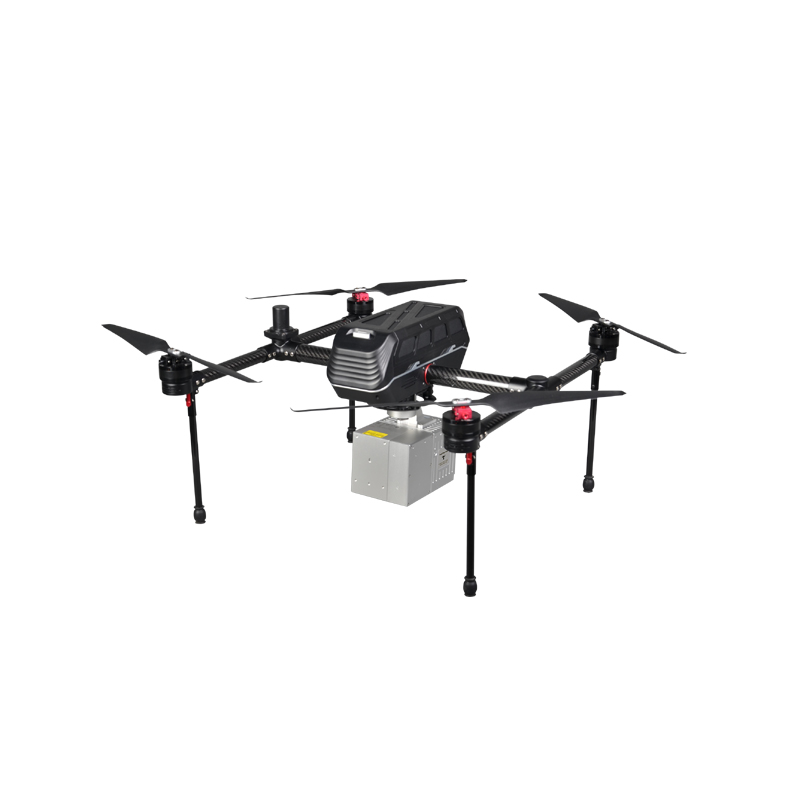

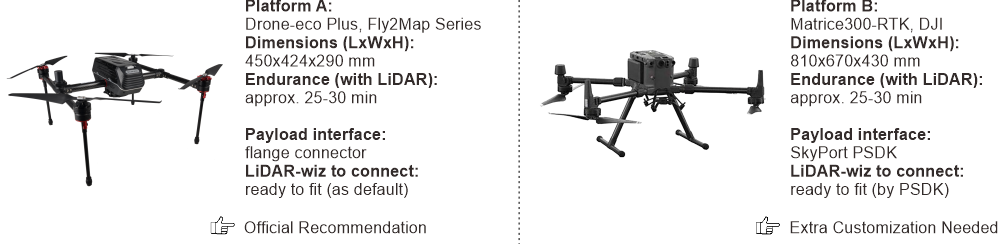

2022 New Model LiDAR, suitable for Kolida Drone-Eco Plus and DJI M-300.
Up to 450 m

Laser Measurement Range

xian.jpg720,000 pt/s


Scanning Speed

xian.jpg1.015 kg


Net Weight (with camera)

xian.jpgDown to 2 cm

Relative Accuracy




wiz

wiz2


wiz3



Assembly Video of LiDAR-Wiz:  https://www.youtube.com/watch?v=VV6GWQAsjYE

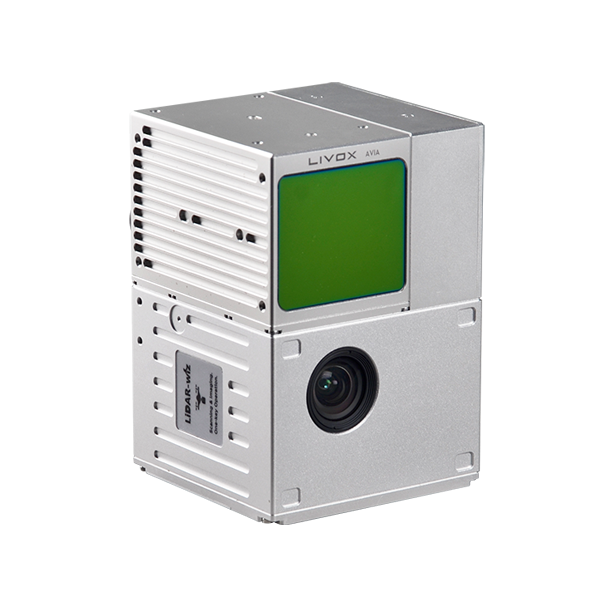

LiDAR

TypeSolid State Sensor

Number of EchosMax. 3 returnsMeasuring RateMax. 720,000 pts per sec (Triple return);
Measuring Range

Max. 450m on 80% reflectivity

Field of ViewHorizontal 70.4°, veritical 77.2°

Relative AccuracyOptimal 2cm

Absolute Accuracy

≤10cm @100m






Camara

Pixel26 MPImaging FOV83°

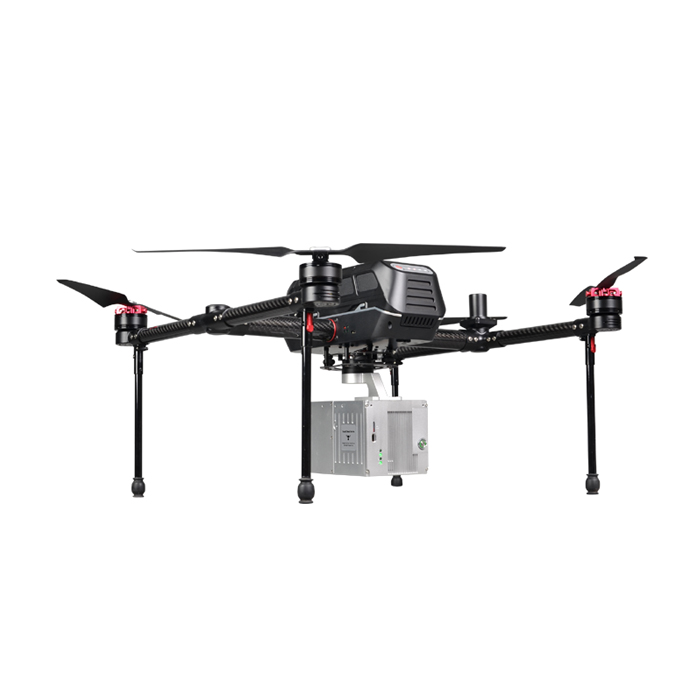

Drone

Model NameDrone-Eco Plus

TypeQuadcopterWeight

3.5kg with battery1.7kg without battery

Battery12,000 mAh

Recharging Time1.2h @12AWorking Height

Typical 60-100m

Endurancewith single-lens camera 60min, with LiDAR-wiz 30min

GNSS ModuleGPS+GLONASS+BDS+GALILEODifferential Mode

GNSS PPK








LiDAR

TypeSolid State Sensor

Number of EchosMax. 3 returnsMeasuring RateMax. 720,000 pts per sec (Triple return);
Measuring Range

Max. 450m on 80% reflectivity

Field of ViewHorizontal 70.4°, veritical 77.2°

Relative AccuracyOptimal 2cm

Absolute Accuracy

≤10cm @100m






Camara

Pixel26 MPImaging FOV83°



Drone

Model NameDrone-Eco Plus

TypeQuadcopterWeight

3.5kg with battery1.7kg without battery

Battery12,000 mAh

Recharging Time1.2h @12AWorking Height

Typical 60-100m

Endurancewith single-lens camera 60min, with LiDAR-wiz 30min

GNSS ModuleGPS+GLONASS+BDS+GALILEODifferential Mode

GNSS PPK








See more specs
