Multi-function Theodolite

Multi-function Theodolite

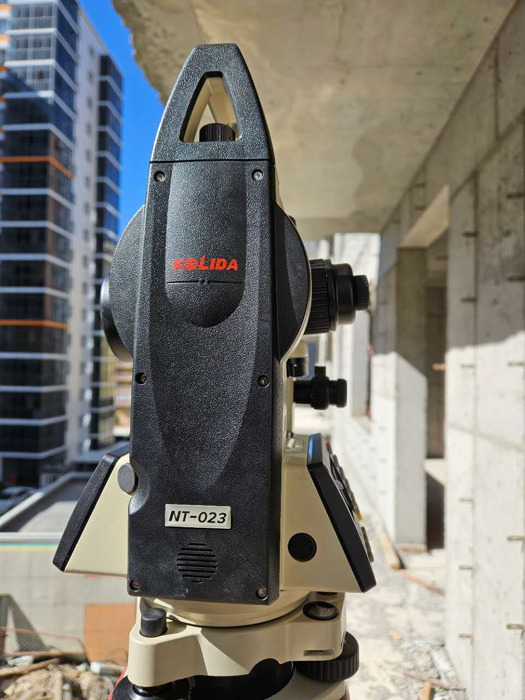

Models:NT-023

This innovative product features distance measuring sensor and setout program.
300m

Distance Measurement

xian.jpgAxis Setout

Two Methods to Choose

xian.jpgFull Numeric

Keyboard with Functional Keys

xian.jpgPower Saving

Long working hours



11b




SAVE INVESTMENT

ON EQUIPMENT

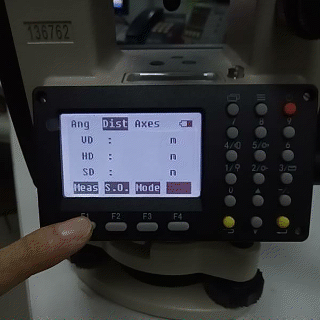

This theodolite is able to measure 300m distance by prism, with an accuracy of 3mm+2ppm. Distance result can be displayed in SD/ HD/ VD. It is more powerful and accurate than disto and traditional tapes.





images



SAVE LABOR COST

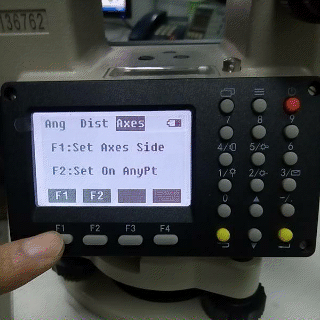

Thanks to the onboard Axis-setout program, now two surveyors are capable to do four men's work. Two setout methods to be choosed according to users' need.




ue


USER EXPERIENCE

IS BETTER



Two full numeric keyboards allow user to realize very quick data input.

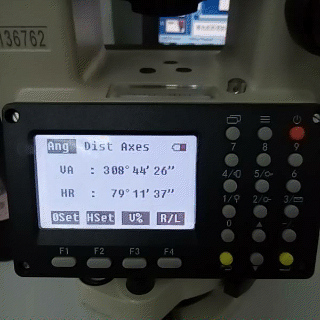

With only one button press, user can switch work mode between Angle/ Distance/ Setout.

Laser Plummet/ Laser Pointer/ E-bubble/ Back Light also can be activate by one button press.



works

LONG

WORKING HOURS


Energy-saving program and the newest lithum battery help this theodolite to work for 8 hours distance measurement and setout.



Distance Measurement

Measurement Range1 prism:                   300m

Accuracy

±(3+2ppmx D)mm

Measuring TimePrism:                  0.35 - 1.5s
Atmosphere CorrectionManual InputPrism Constant CorrectionManual Input









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading1"
Compensator

Single Axis Liquid-electricRange ±3', Accuracy 3"









User Interaction

Operation SystemDOS

Color ScreenN/A
Touch Screen

N/A

KeyboardFull Numeric with backlight

Trigger KeyN/A
Bluetooth & wifiN/A
Internal Storage

N/A


External Storage

N/A







Working Capability

ProgramAxis Setout

Graphic Display
N/A
Laser Pointer & Laser PlummetYes
Endurance

8 hours distance measurement


Setout Guide Light

N/A


Camera Function

N/A





Distance Measurement

Measurement Range1 prism:                   300m

Accuracy

±(3+2ppmx D)mm

Measuring TimePrism:                  0.35 - 1.5s
Atmosphere CorrectionManual InputPrism Constant CorrectionManual Input









Angle Measurement

Measurement MeAbsolute Encoding

Accuracy2"
Minimum Reading1"
Compensator

Single Axis Liquid-electricRange ±3', Accuracy 3"









User Interaction

Operation SystemDOS

Color ScreenN/A
Touch Screen

N/A

KeyboardFull Numeric with backlight

Trigger KeyN/A
Bluetooth & wifiN/A
Internal Storage

N/A


External Storage

N/A







Working Capability

ProgramAxis Setout

Graphic Display
N/A
Laser Pointer & Laser PlummetYes
Endurance

8 hours distance measurement


Setout Guide Light

N/A


Camera Function

N/A





See more specs
