Surveying 1.84 sq.km in just 20 Hours and Get 4 cm Accuracy --- Z-Lab LiDAR was Applied in Campus Construction of A University

2021-03-02

December 2020, a university in Chongqing city China asked KOLIDA LiDAR team to help to implement a topographic survey for their new campus construction site.


1

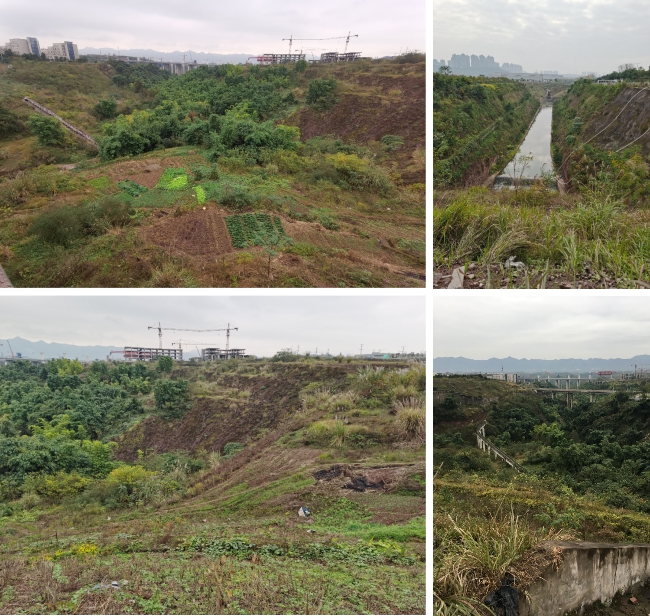

The mission area is a 1.84 sq.km land of weeds, ravines, tower cranes, is hard to get through by walking.


2-1


The client needed to do a 1:500 topographic mapping, final data output Colored Point Cloud, DEM, with 10cm elevation accuracy, but time given is only 2 weeks.


1. KOLIDA’s Solution


After studying client’s demand, KOLIDA LiDAR team chose to use DJI Hexacopter Matrice600 Pro + Z-Lab LiDAR SZT-R250.

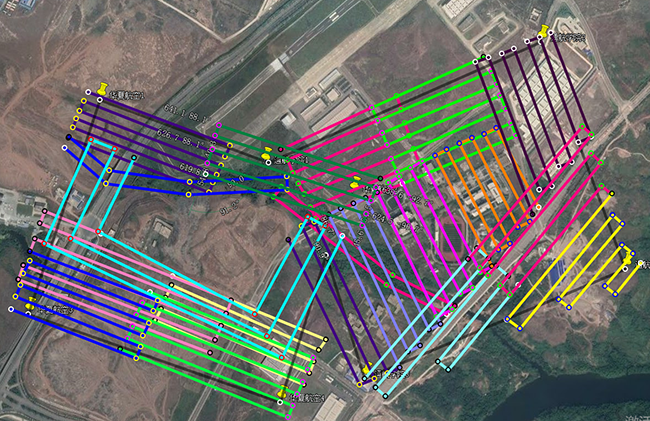

It was planned to do field work in 5 days, 4 hours in each day, totally 20 flights to be performed. Due to the terrain changes,  the flight altitude will be around 20m - 80m range, Strip Interval as 50m.


7


2. Advantage of SZT-R250

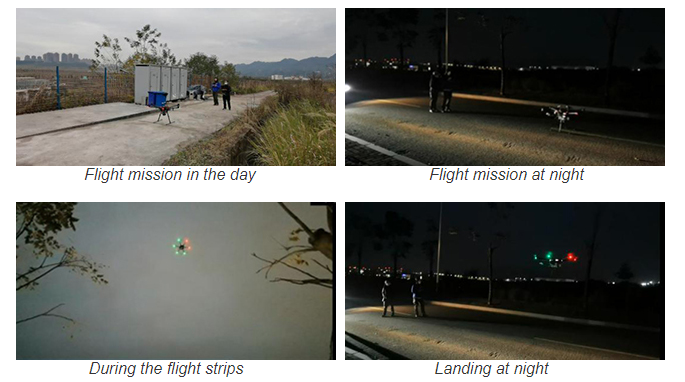

In the mission area we were allowed to fly UAV for only few hours in each day, however SZT-R250 system is able to work in both day and night, it saves a lot of time.


11111


The system is easy to maneuver, taking off and landing doesn’t require a big space.


2222222



Finally the elevation accuracy is within 5cm.


33333

44444


3. Data Output

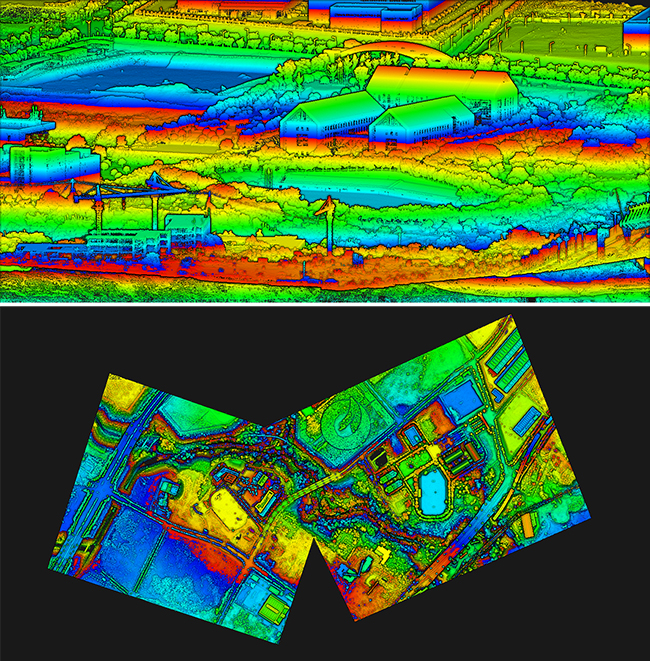

The Indoor data processing took 7 days, final result are geo-referenced Point Cloud, as well as DEM.
